3D matrix lights create volumetric stage effects — floating 3D sculptures, animated logos, and immersive installations. When specifying for stage use, four technical factors matter most: design structure (modular vs sheet metal cabinet), frame synchronization (30fps with sync), control protocol (Art-Net vs sACN), and refresh rate (800kHz controller data speed). For permanent stage installations where reliability and maintenance access are critical, modular design with front-access LED replacement and Art-Net control is the preferred configuration.
Introduction: Why Stage Applications Demand More
3D matrix lights are among the most impressive visual display systems available today. They create volumetric lighting effects — floating 3D sculptures, animated logos, and immersive installations that captivate audiences in theaters, concert venues, and stage productions.
However, not all 3D matrix lights are built the same. Behind the visual spectacle, there are significant technical differences in design structure, control protocols, frame synchronization, and refresh rates that directly impact installation, maintenance, performance, and long-term reliability.
This guide explains these technical aspects from a stage lighting perspective — helping you make an informed decision for your next production.
Part 1: Design Structure – Sheet Metal Cabinet vs Modular Design
One of the most fundamental differences in 3D matrix light systems is the cabinet construction.

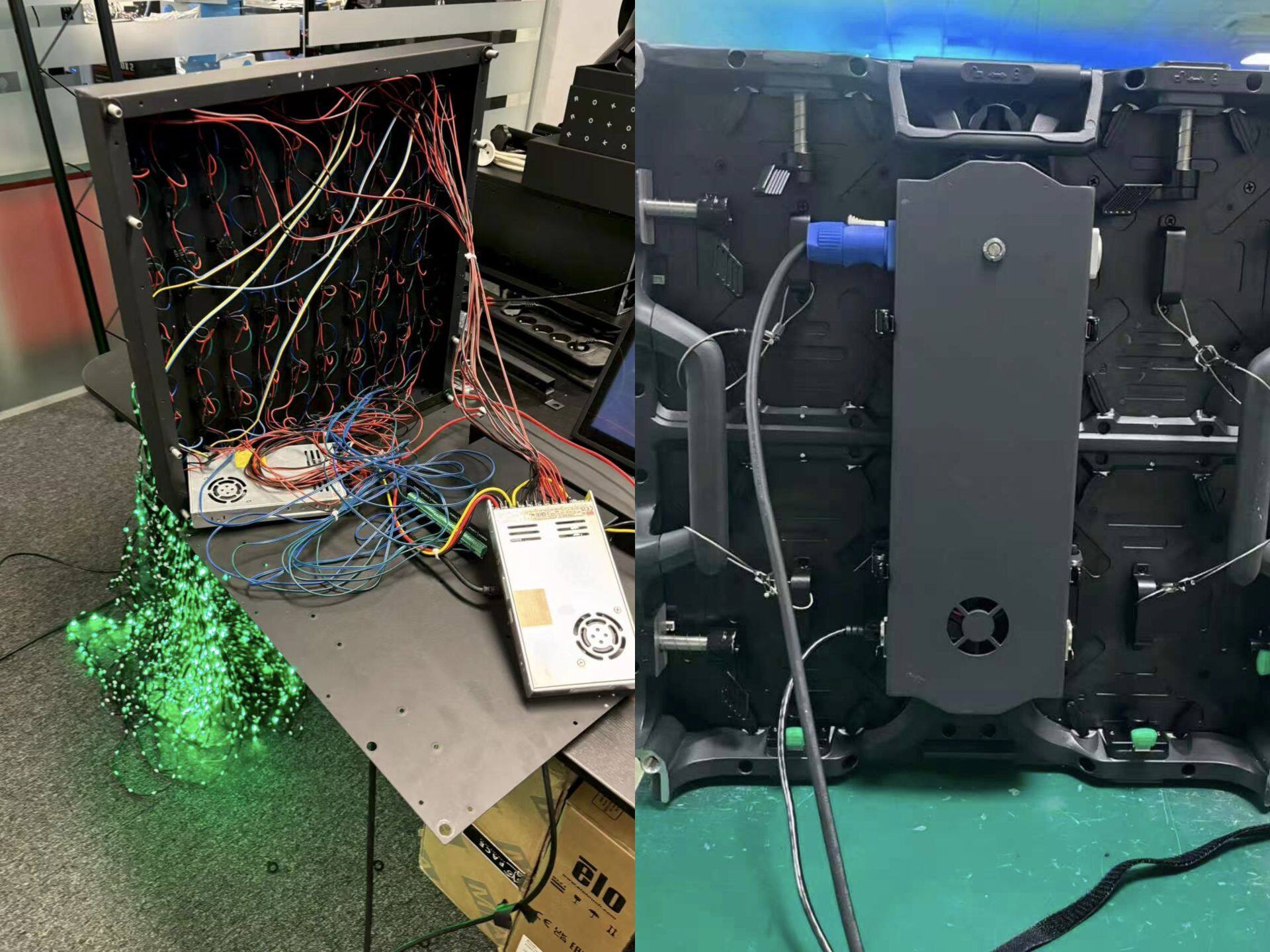

Sheet Metal Cabinet Design
In this design, the controller and power supply are built directly into the sheet metal cabinet.
Feature | Sheet Metal Cabinet |
|---|---|
Controller/Power placement | Built-in (inside the cabinet) |
LED string replacement | Requires disassembly of the cabinet |
Structure | Fixed, non-modular |
Long-term stability | LED strings may sag in the middle over time |
The downside: If a single LED string fails, you must disassemble the entire cabinet to access and replace it. This increases downtime and maintenance costs — especially problematic for permanent stage installations where every minute of downtime matters.
Modular Design (Premium Stage Option)
Modular 3D matrix lights use a more sophisticated construction approach.
Feature | Modular Design |
|---|---|
Controller/Power placement | Integrated into a separate "backpack" unit |
LED string replacement | Strings can be removed and replaced from the front — no cabinet disassembly needed |
Structure | Modular, serviceable |
Cabinet material | Aluminum extrusion (display-grade) |
Long-term stability | LED strings remain flat and even over time |
The advantages:
Benefit | Why It Matters for Stage |
|---|---|
Front-access LED replacement | Individual strings can be replaced from the front without touching the cabinet — dramatically reducing maintenance time during a run. |
Backpack power/control unit | If a power supply or controller fails, you can swap it out without disturbing the LED strings or cabinet structure. |
Aluminum extrusion cabinet | Unlike sheet metal cabinets that can warp or sag, aluminum extrusion provides a stable, flat mounting surface. LED strings remain perfectly aligned — essential for a clean visual display. |
Design choice matters: For stage installations where long-term reliability and ease of maintenance are priorities, modular design is the clear winner.
Part 2: Frame Synchronization – Essential for Multi-Cabinet Stage Setups
Frame synchronization (often called "frame sync" or Art-Sync) is critical for stage installations using multiple cabinets or controllers.
What Is Frame Sync?
When multiple controllers drive different sections of a large stage display, each controller receives data packets at slightly different times. Without synchronization, this can cause screen tearing — where the image appears misaligned or "split" at the boundaries between controllers.
Without Frame Sync | With Frame Sync |
|---|---|
Each controller updates independently | All controllers update simultaneously |
Tearing and misalignment visible | Seamless, synchronized image |
Noticeable in fast-moving animations | Smooth, professional appearance |
Frame sync solves this by sending a "sync" signal after each frame. All controllers receive the signal and update their outputs at exactly the same time.
Typical Stage Performance
For many 3D matrix light systems used in stage applications, the typical frame rate is approximately 30 frames per second (fps) . With frame sync support, 30fps is fully synchronized across all cabinets — ensuring smooth, tear-free animations.
Is 30fps sufficient for stage? For most stage, theater, and live event applications, 30fps provides smooth motion and seamless effects. For high-speed video or broadcast applications, higher frame rates may be desired — and can be customized.
Part 3: Control Protocols – Art-Net vs sACN for Stage Systems
The choice of control protocol impacts system flexibility, scalability, and ease of configuration.
Art-Net
Art-Net is an Ethernet-based lighting control protocol widely used in entertainment and stage lighting. It is the default protocol for many 3D matrix light systems.
Feature | Art-Net |
|---|---|
Protocol type | Ethernet (UDP) |
RDM support | ✅ Yes (Remote Device Management) |
Configuration | IP-based |
Industry adoption | Very common in entertainment and stage lighting |
sACN (E1.31)
sACN (Streaming ACN) is another Ethernet-based protocol that is increasingly popular for large-scale permanent installations.
Feature | sACN |
|---|---|
Protocol type | Ethernet (UDP) |
RDM support | ❌ No (requires switching back to Art-Net) |
Configuration | Universe-based (simpler for large systems) |
Industry adoption | Growing, especially in architectural installations |
Why Some Systems Choose Art-Net Over sACN
Some 3D matrix light systems do not support sACN by default. Why?
Reason | Explanation |
|---|---|
RDM functionality | Art-Net supports RDM (Remote Device Management), which allows remote configuration, status monitoring, and troubleshooting of connected devices. |
Installation convenience | sACN does not support RDM. If a system uses sACN, you cannot easily access RDM features — you must manually switch back to Art-Net. |
Field accessibility | Once installed, accessing the controller to switch protocols may be difficult or impractical (e.g., if mounted in a high truss or enclosed cabinet). |
The workaround: If a client requires sACN support, it can be added through customization. However, for stage projects where RDM functionality is important, Art-Net is often the preferred choice.
Controller Compatibility
For clients who prefer to use their own controllers (such as Advatek, Falcon, or other professional controllers), the system is compatible as long as the controller uses the Art-Net protocol.
Key takeaway: The system is based on Art-Net, which is a widely supported open standard. Most professional lighting controllers — including Advatek, Falcon, Enttec, and others — can drive the system without compatibility issues.
Part 4: Refresh Rate – LED Chip vs Controller Output
Understanding refresh rate is important for assessing visual quality in stage applications.
LED Chip Refresh Rate
The LED chips themselves may support a certain PWM refresh rate. In some cases, the LED chip can support 1800Hz.
Controller Output Refresh Rate
However, the controller output refresh rate may be different from the LED chip's maximum capability. In typical implementations, the controller outputs at 800kHz data transmission speed — which effectively determines the system's refresh performance.
Parameter | Typical Value |
|---|---|
LED chip PWM refresh rate | Up to 1800Hz |
Controller data transmission speed | 800kHz |
What this means for stage: The controller's 800kHz data speed determines how fast data can be sent to the LEDs. This is more than sufficient for 30fps frame-synchronized playback, even with large numbers of pixels — ensuring smooth, flicker-free performance on stage.
Part 5: Summary – Key Technical Considerations for Stage
Aspect | Sheet Metal Cabinet | Modular Design (Premium) |
|---|---|---|
LED string replacement | Requires cabinet disassembly | Front-access, easy replacement |
Controller/Power service | Built-in, difficult to access | Separate backpack unit, easy swap |
Long-term alignment | May sag over time | Aluminum extrusion keeps flat |
Frame sync support | Varies by model | ✅ Yes (30fps synchronized) |
sACN support | Varies by model | Optional (customizable) |
Art-Net support | ✅ Standard | ✅ Standard |
Controller compatibility | Art-Net controllers | Art-Net controllers |
Refresh rate | Controller: 800kHz data speed | Controller: 800kHz data speed |
