Client Stories: Real Partnerships, Real Results

These showcases feature real-world project implementations for ElisaCustom clients; beyond technical specifications, they demonstrate how we collaborate with clients to tackle a wide range of complex challenges.

SK6812 12V Digital LED Strips for a Large-Scale Circle Display

A client story about Twan's large-scale circular LED display project in the Netherlands — using SK6812 12V digital flexible LED strips, 60 LEDs/m, 2 meters per circle.

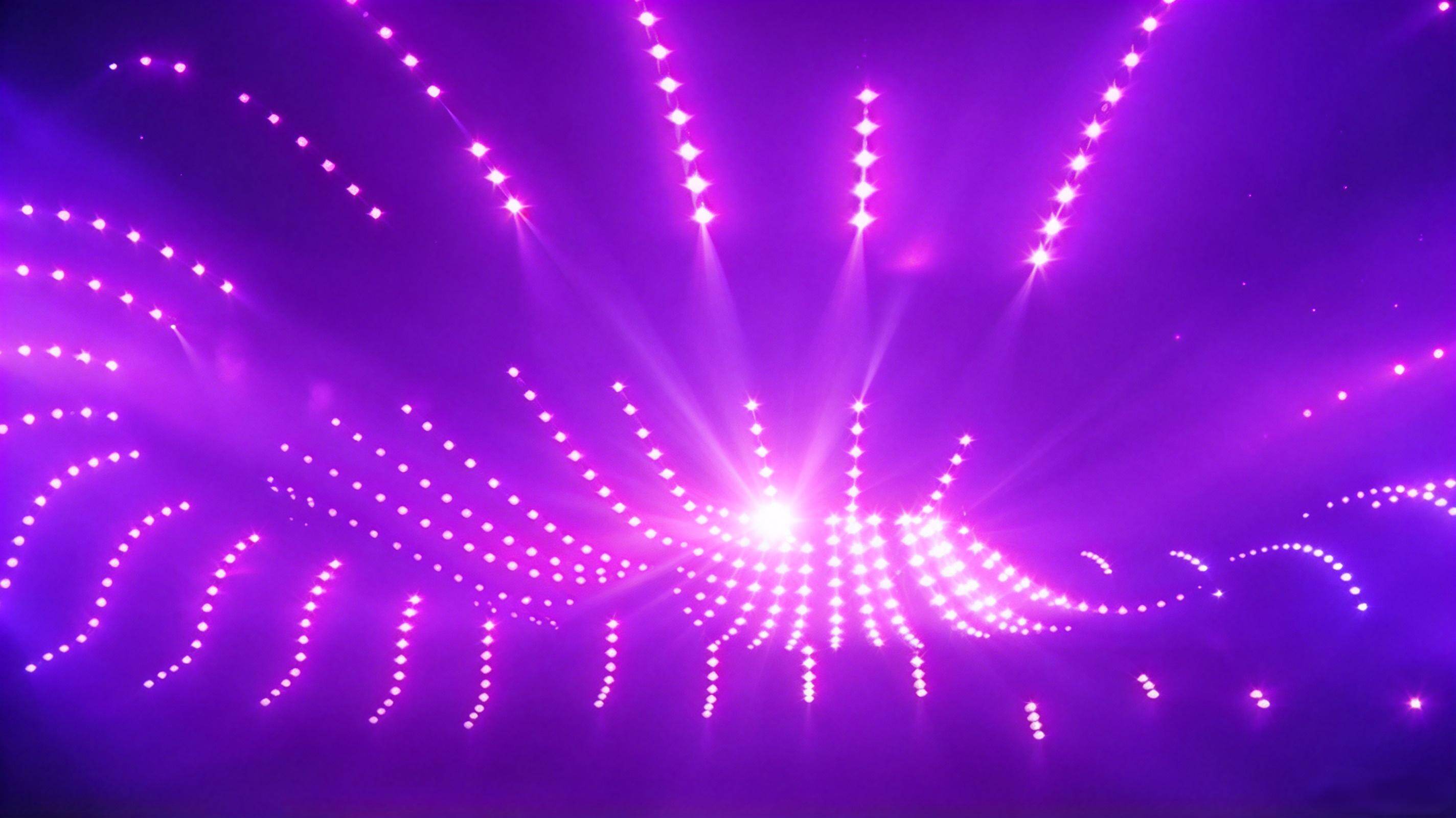

SK6812 5050 RGB Flexible LED Strips for a Large-Scale Display Project

A client story about Ron Haines' large-scale display project — 32 rolls of SK6812 5050 RGB flexible LED strips with K1000C controller and LRS-350-5V power supplies.

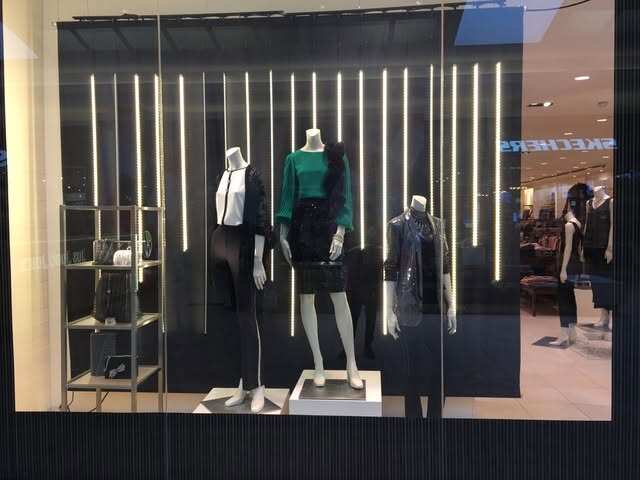

Warm White LED Rigid Bars for a Canadian Clothing Store

A client story about Claudia's clothing store project in Canada — 1,400 warm white LED rigid bars, custom connectors, and matched power supplies for a safe, simple installation.

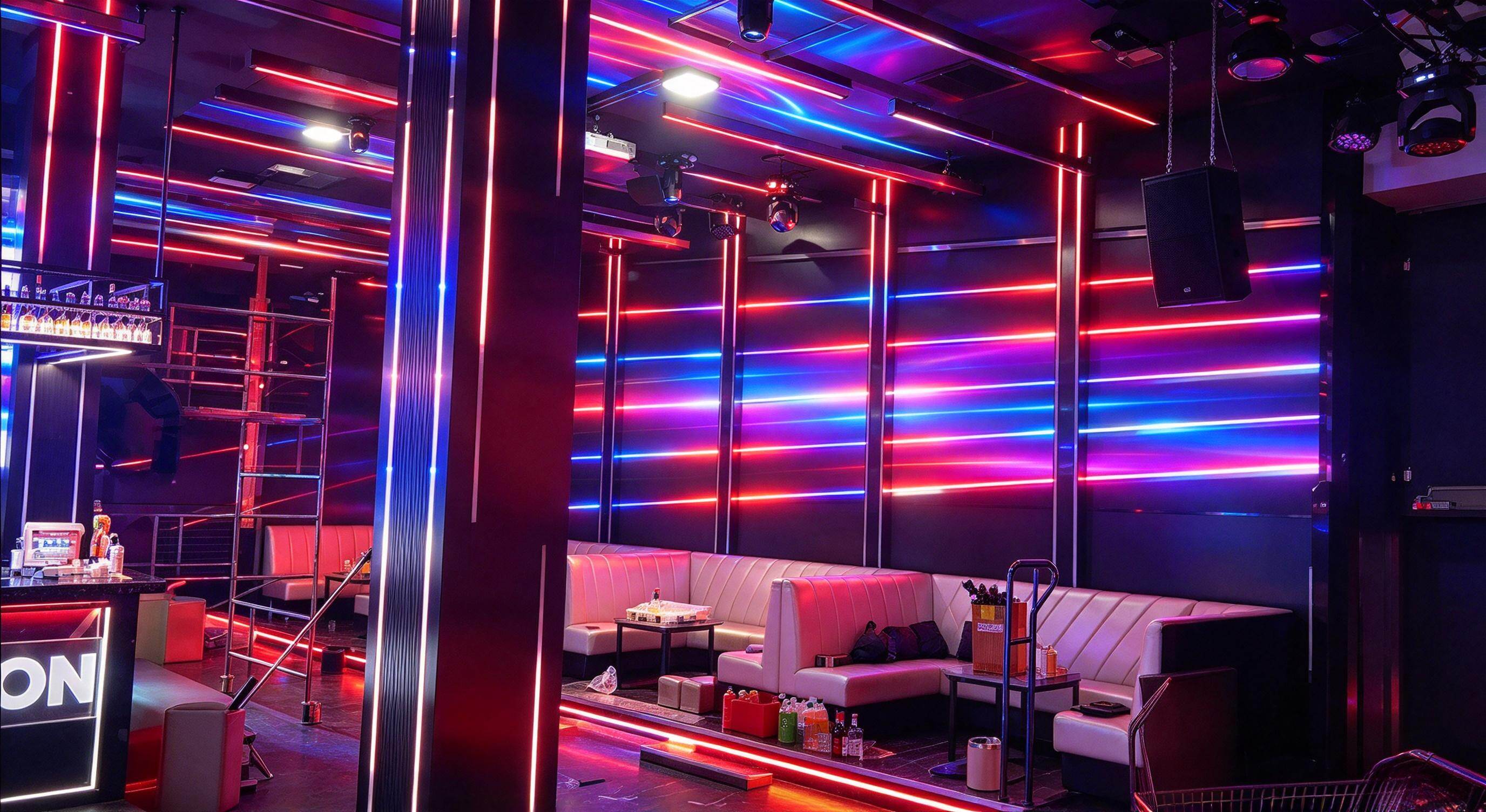

WS2811 Digital LED Strips for a Nightclub Lighting Project

A client story about Radek's nightclub lighting project — 760 meters of WS2811 digital LED strips, 700 connector pairs, and 45 power supplies. A complete, project-ready lighting package.

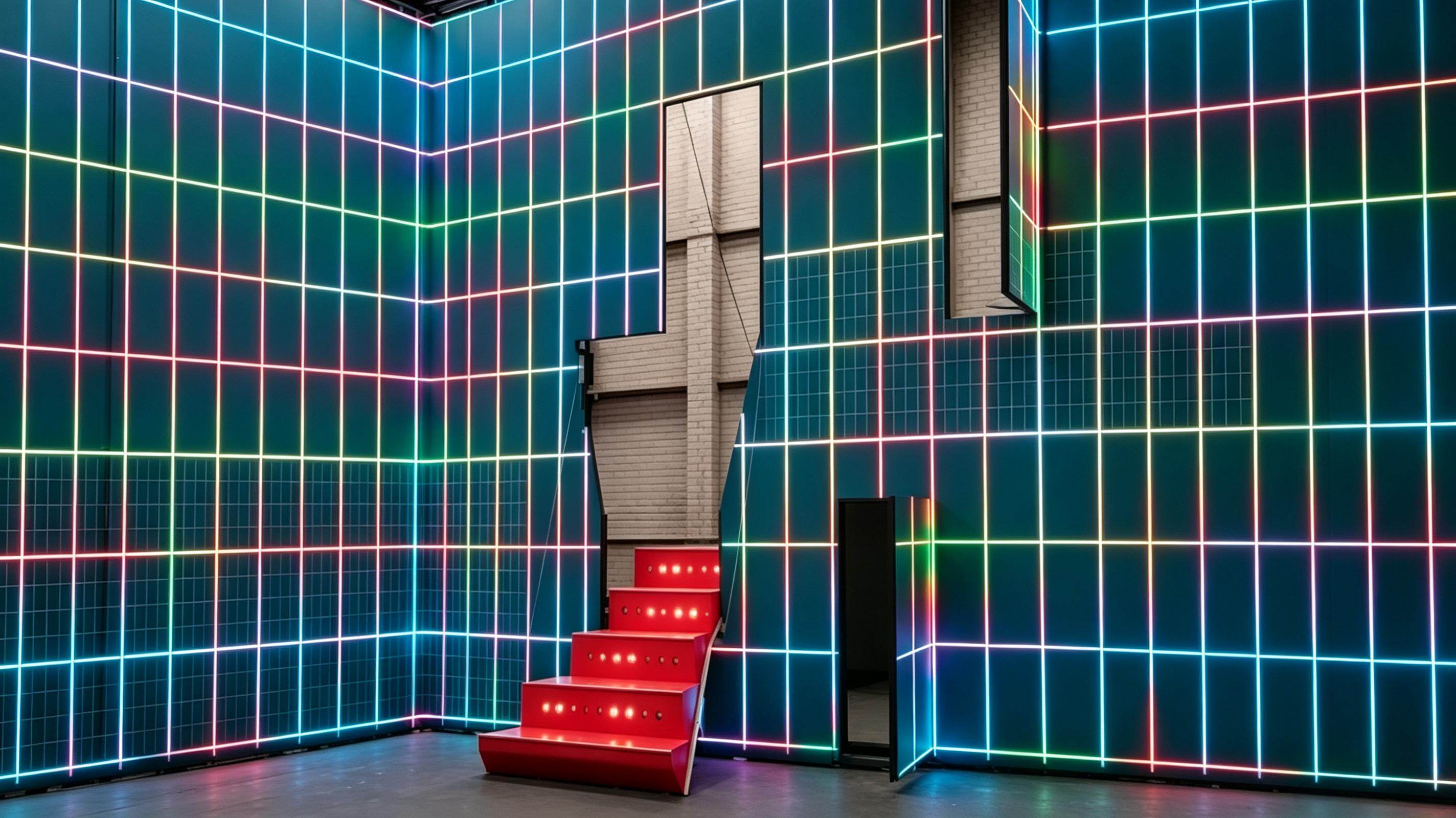

GS8208/GS8206 LED Strip with Break-Point Continuation for a Demanding Project

A client story about Kevin's project — why he chose the GS8208/GS8206 LED strip with break-point continuation, where one failed LED doesn't affect the rest of the strip.

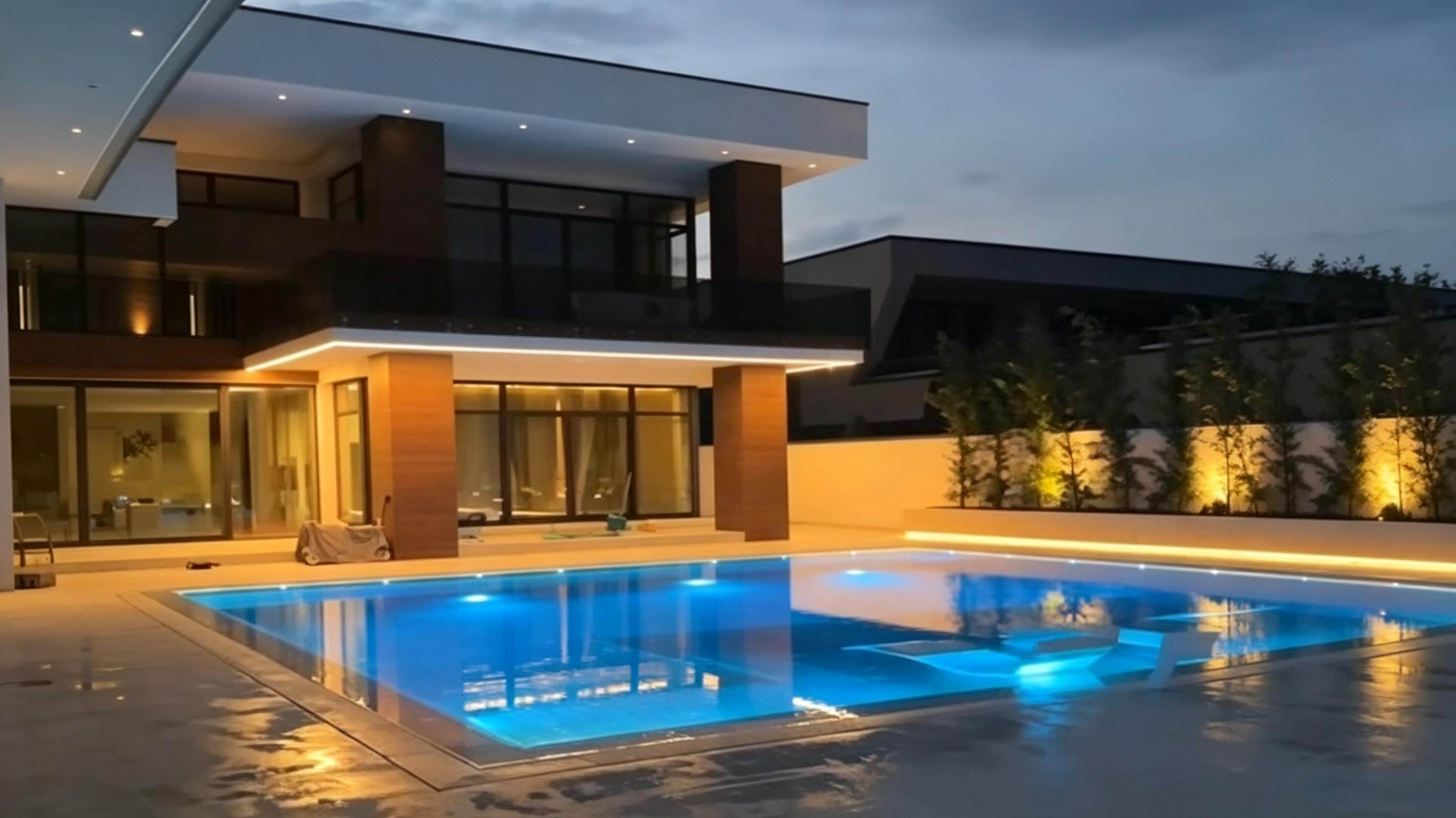

20×14 Top-View Neon Flex for Pool Lighting – Compact Profile, Full Performance

A client story about Jean's pool project — how we recommended the 20×14 top-view neon flex with 12mm RGBW LED strip for a pool edge installation. IP67–68, DC24V, 10m per roll.

26mm Pixel Light for a Small Stage Truck – Compact Size, Full Performance

A client story about Olivier's stage truck project, using our 26mm pixel light with 6 SMD3535 RGB LEDs, UCS1903, DC24V, and IP67 — brightness matching larger 35mm/45mm models at a better cost-performance ratio.

60mm 2-Sided Pixel Cabochon Light for an Amusement Park Renovation

A client story about Mareen's amusement park renovation project, using our 60mm 2-sided pixel cabochon light (XXA-6018-360D) with 18 SMD5050 RGB LEDs, UCS1903, DC24V, and waterproof connector.

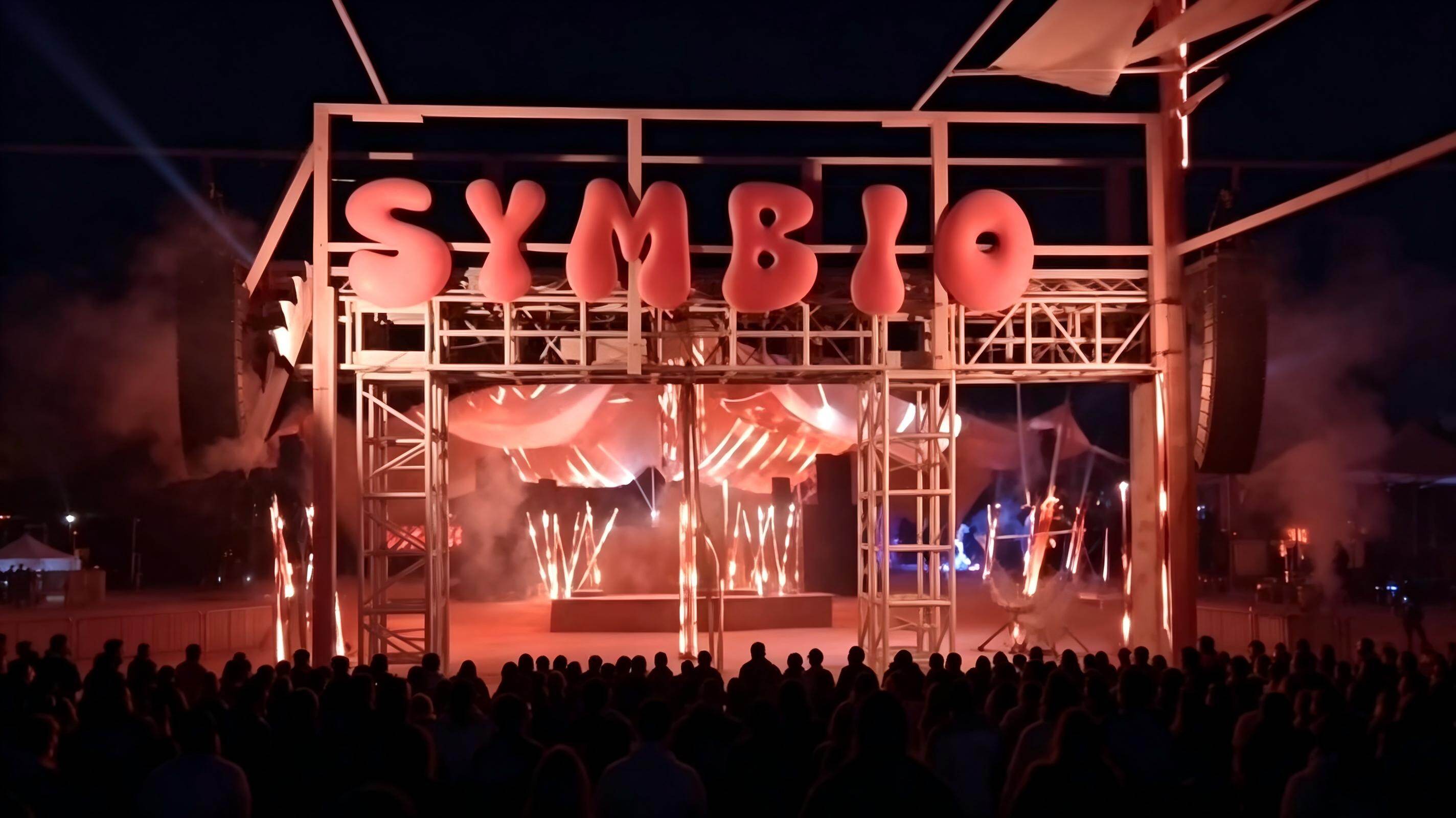

A Custom 3-Sided Flex Neon Installation That Crossed Continents

A client story about Doug's custom 3-sided flex neon project — from sample testing to a cross-continent installation, severe weather, and remaining neon for a future project.

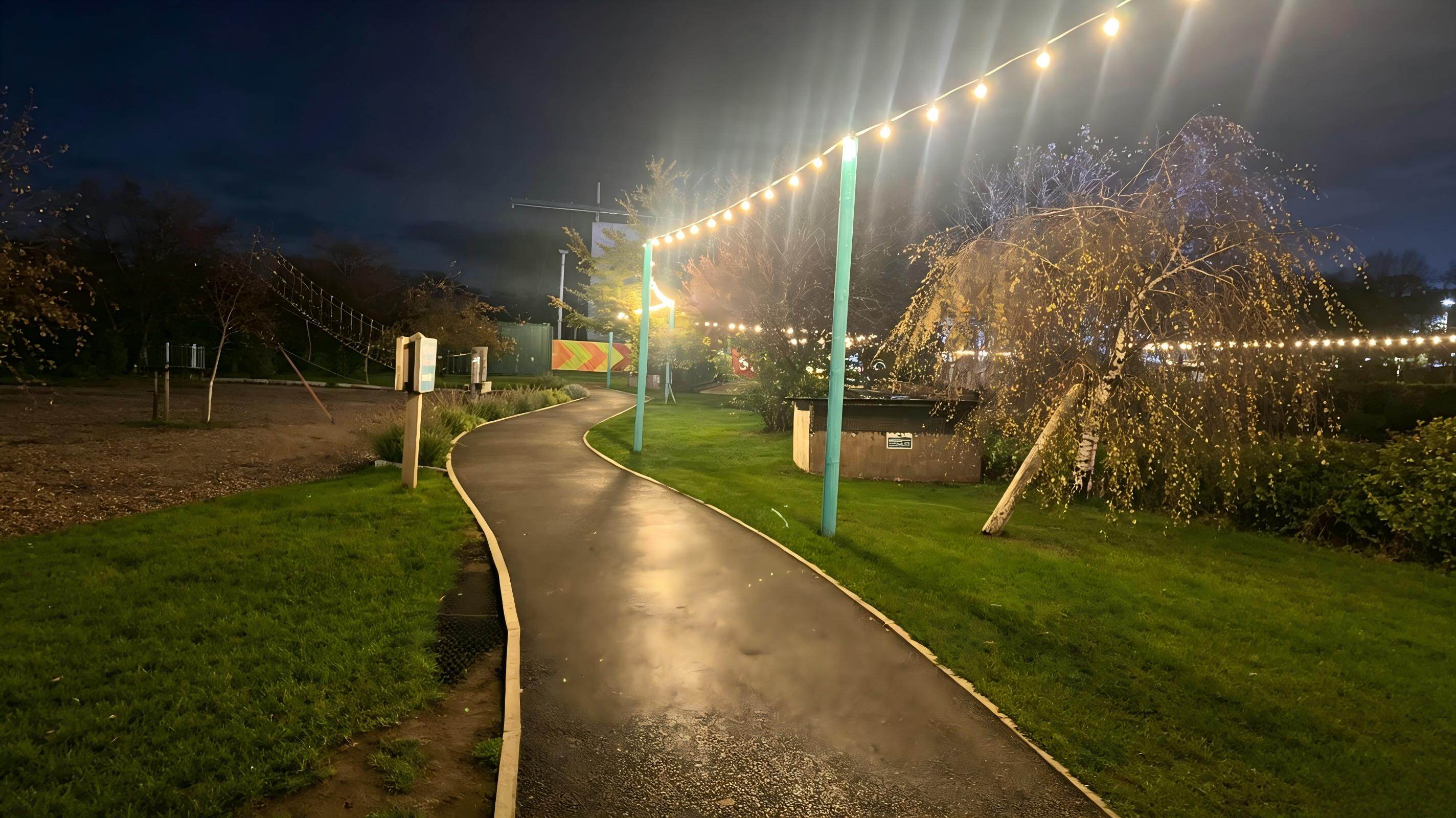

When the Factory Said No – A Festoon Cable Solution

A client story about sourcing a specific brand of Festoon cable for William — how we bridged the gap between a factory's minimum order requirements and a client's project needs.

A Complete Pixel Lighting Kit for William – From Sketch to Full System

A client story about William's pixel lighting project — from a simple sketch to a complete kit with wiring diagrams, optimized pixel counts, and free thank-you strings.

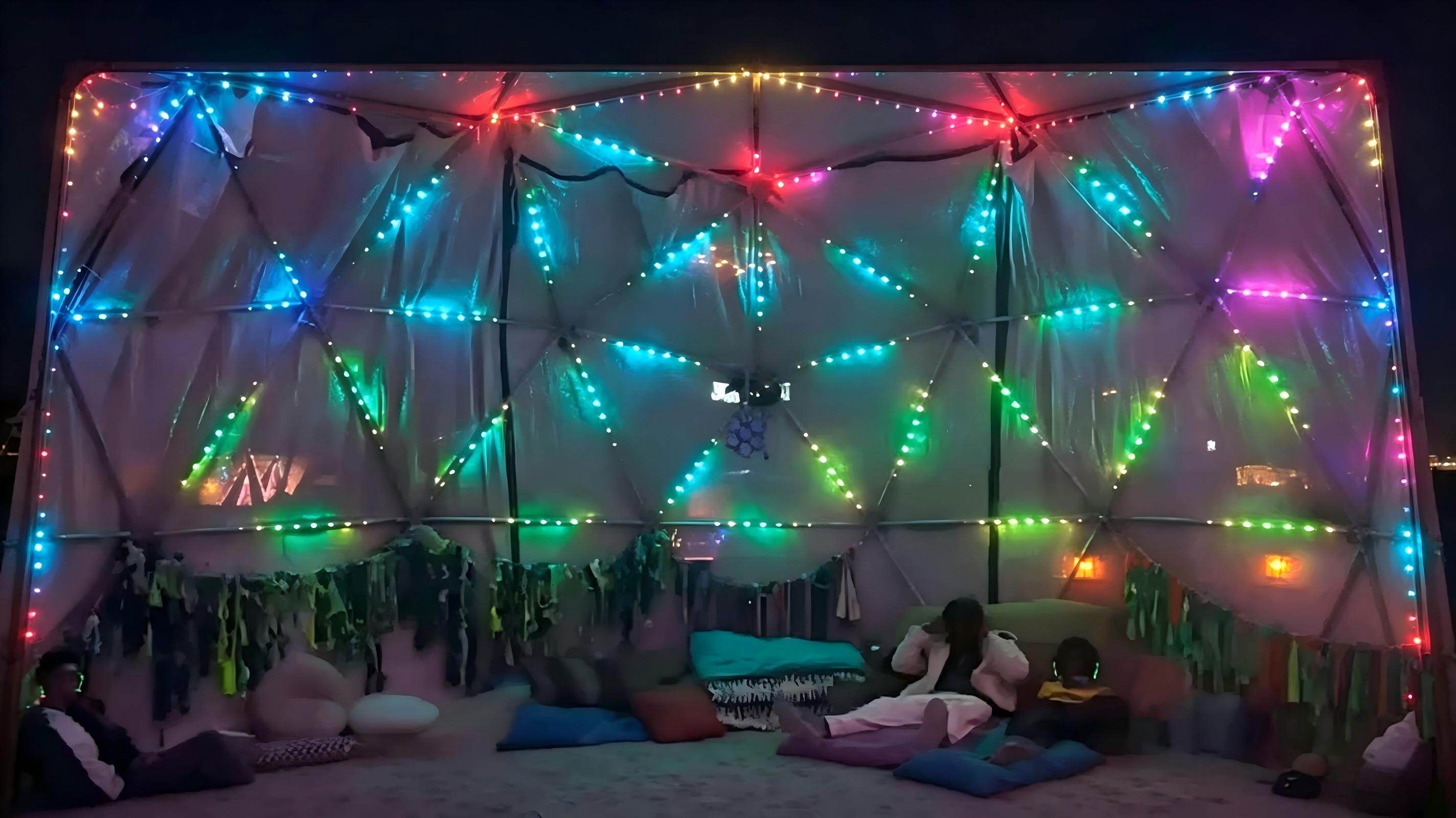

Lighting a Burning Man Geodesic Dome with WS2811 Mini Pebble Pixel Strings

A client story about Adam's audio-reactive geodesic dome installation at Burning Man, built with our 6×10mm WS2811 Mini Pebble Pixel Strings in custom lengths.

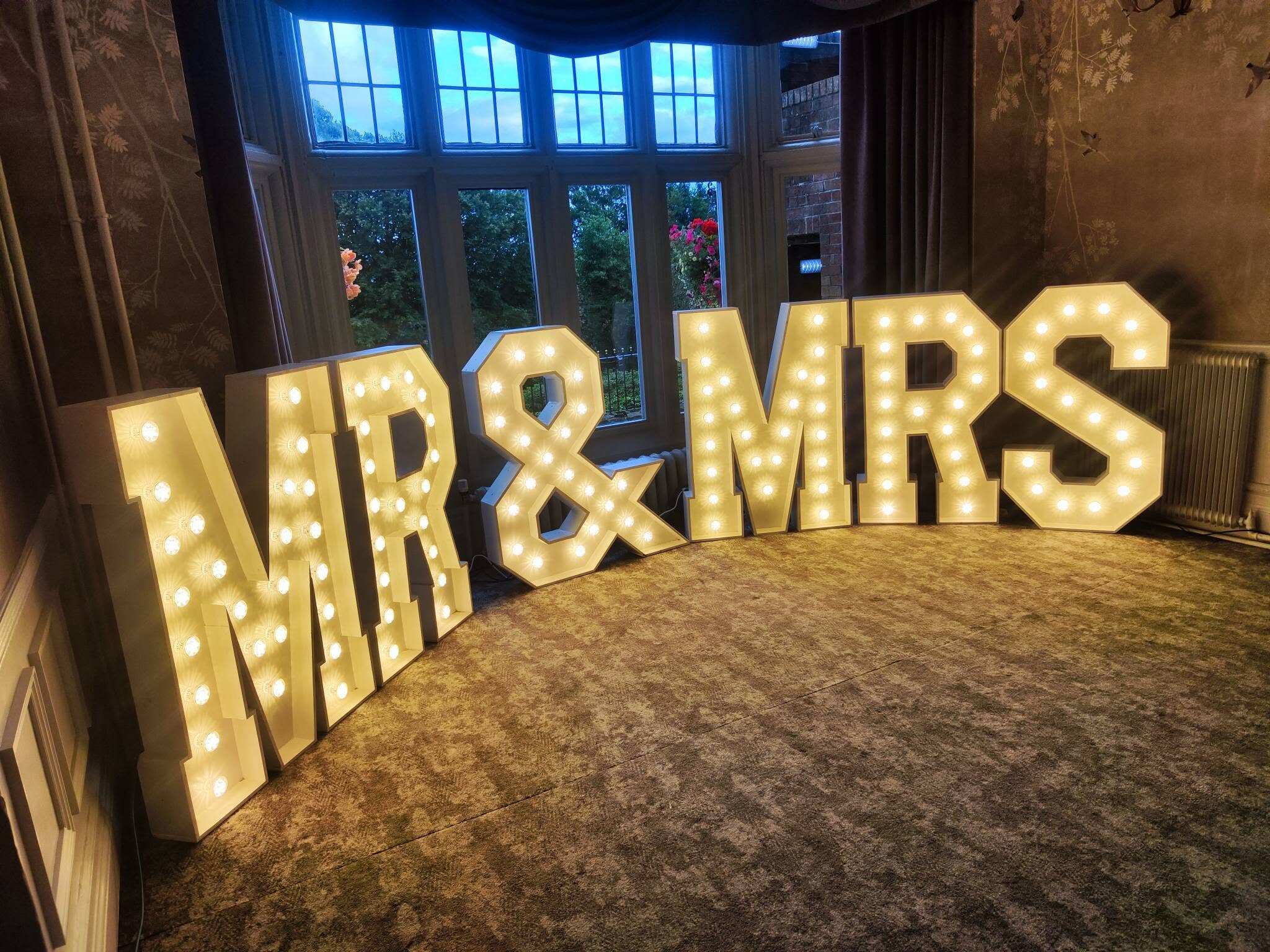

A Custom 60mm Cabochon Light for a Wedding Signage Project

A client story about Robert's wedding signage project — how we adapted our standard SPI pixel light to a custom single-white 60mm cabochon light for an MR & MRS sign.

Lighting a Burning Man Marine Creature with D15 Braided Strip Light

A client story about Kev's Burning Man marine life sculpture, lit with our D15 Braided Strip Light — a flexible, IP67, WS2811 pixel strip built for extreme environments.

When Customs Delays Hit – Trust and Persistence Still Delivered

A client story about a white neon project that faced sample-testing timeline pressure and U.S. customs delays — but still reached a successful installation through trust and partnership.

From a Missed Visa to a 300-Unit Order: A Belgium Customer Story

A true story of how a missed visa led to a 300‑unit custom order. Learn how first response speed, a free pre‑production sample, and honest communication built a long‑term customer relationship.

From Small Inquiries to Million-RMB Orders: A Story of Trust, Persistence, and Problem-Solving

A true story of how a seemingly small client from Spain grew into a $145,000+ order. Learn how customization, honest communication, and never giving up on samples turned a slow start into a million-dollar partnership.

“I Think the Price Is No Problem”: A Croatia Story About Trust, Listening, and a $35,000 Order

A Croatia customer with self‑taught English, a project drawing, and almost zero price sensitivity. Learn how listening, preparation, and a night at “Window of the World” won a $35,000 custom LED order — without being the cheapest quote.

Project Case Study

Complete lighting solutions — from design to delivery. Explore how we provide integrated systems including LED fixtures, controllers, power supplies, and full project support.

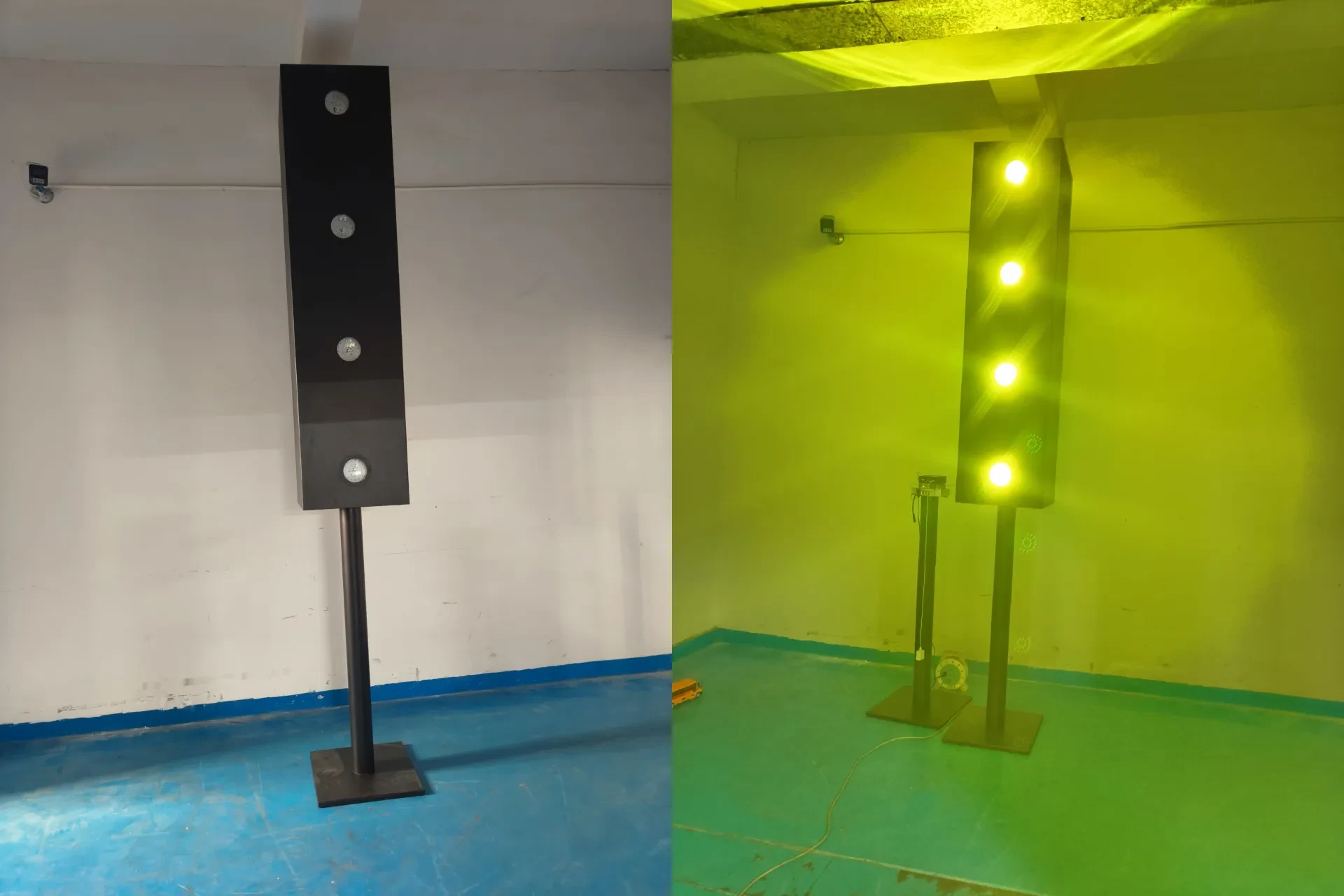

Custom Modular LED Stoplights for a Show Choir

A project case study on four portable vertical LED stoplights for a touring show choir — covering custom PCB design, large glass lenses, external TTLSA controller, and MEAN WELL LRS-350-24 power supplies.

Read case study

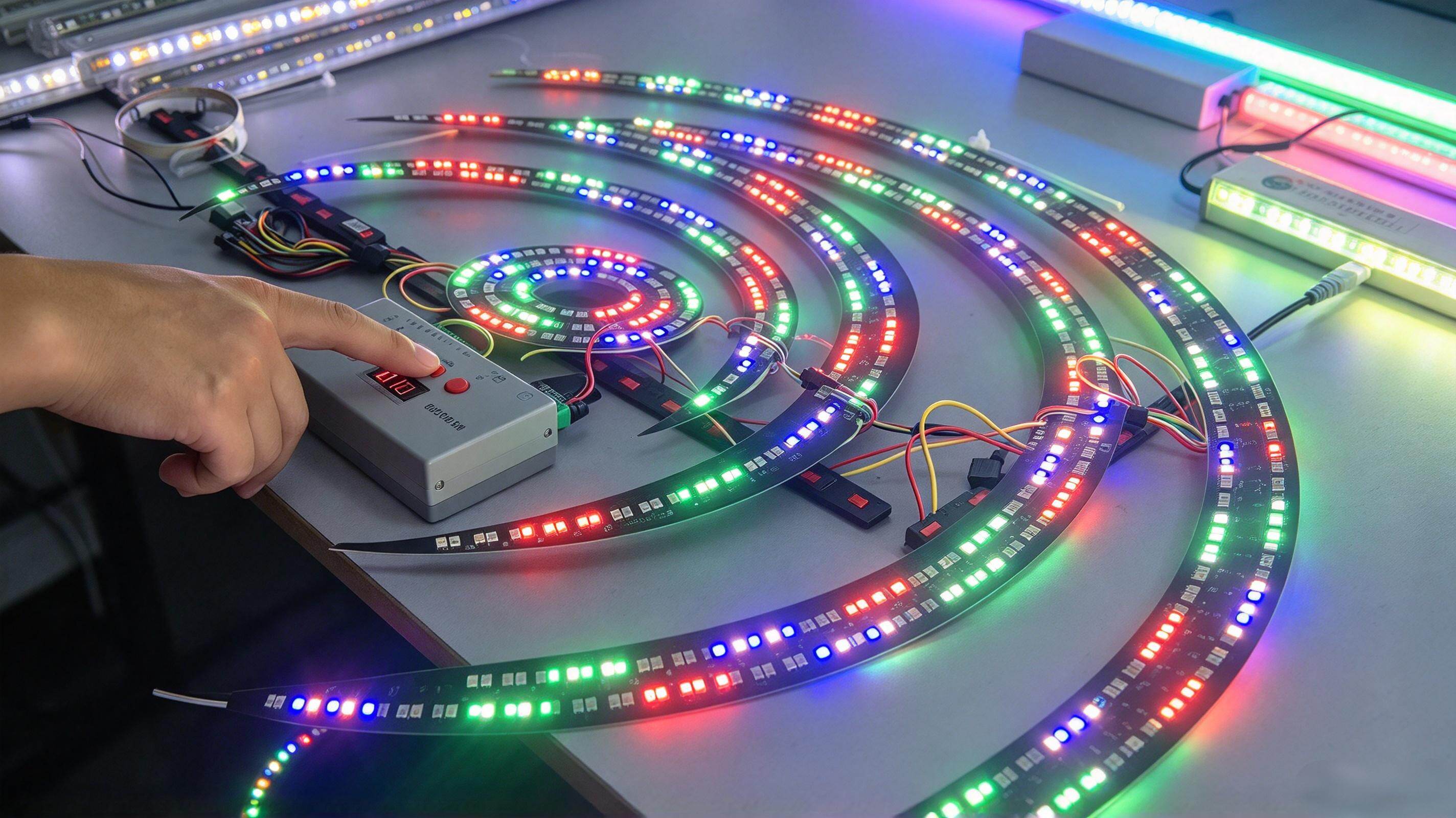

Custom WWA Pixel LED Module – 5VDC, SK6812, Dual-Side Illumination

A project case study on a custom WWA pixel LED module — featuring dual-side illumination, SK6812 IC, 5VDC operation, silicone-coated waterproofing, and a custom frame. 300 sets delivered.

Read case study

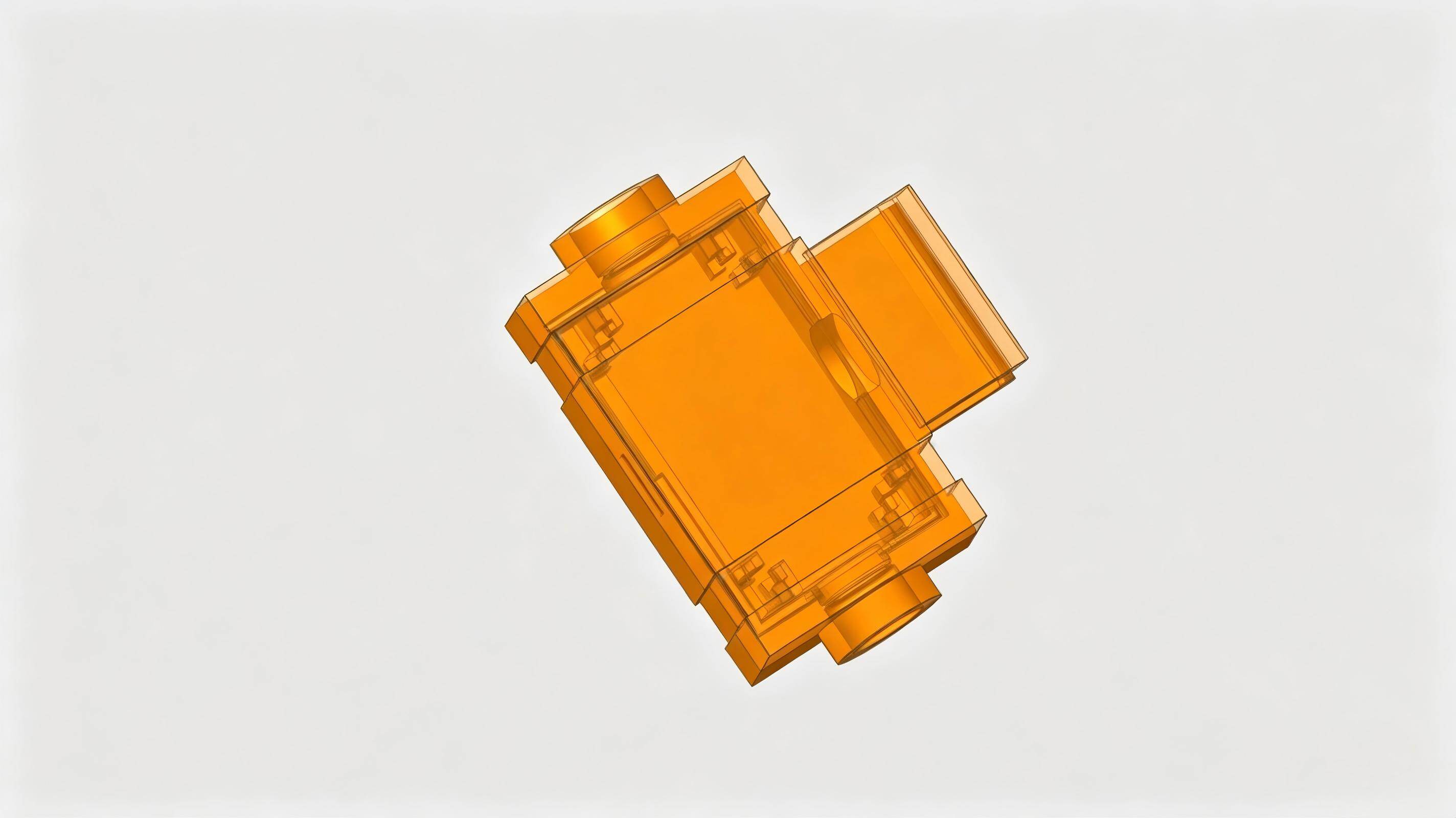

From a Small Inquiry to a Million-RMB Custom ODM Order

A custom ODM case study showing how small, exploratory inquiries become fully engineered LED products — from PCB design and IC selection to mechanical integration and IP-rated protection.

Read case study

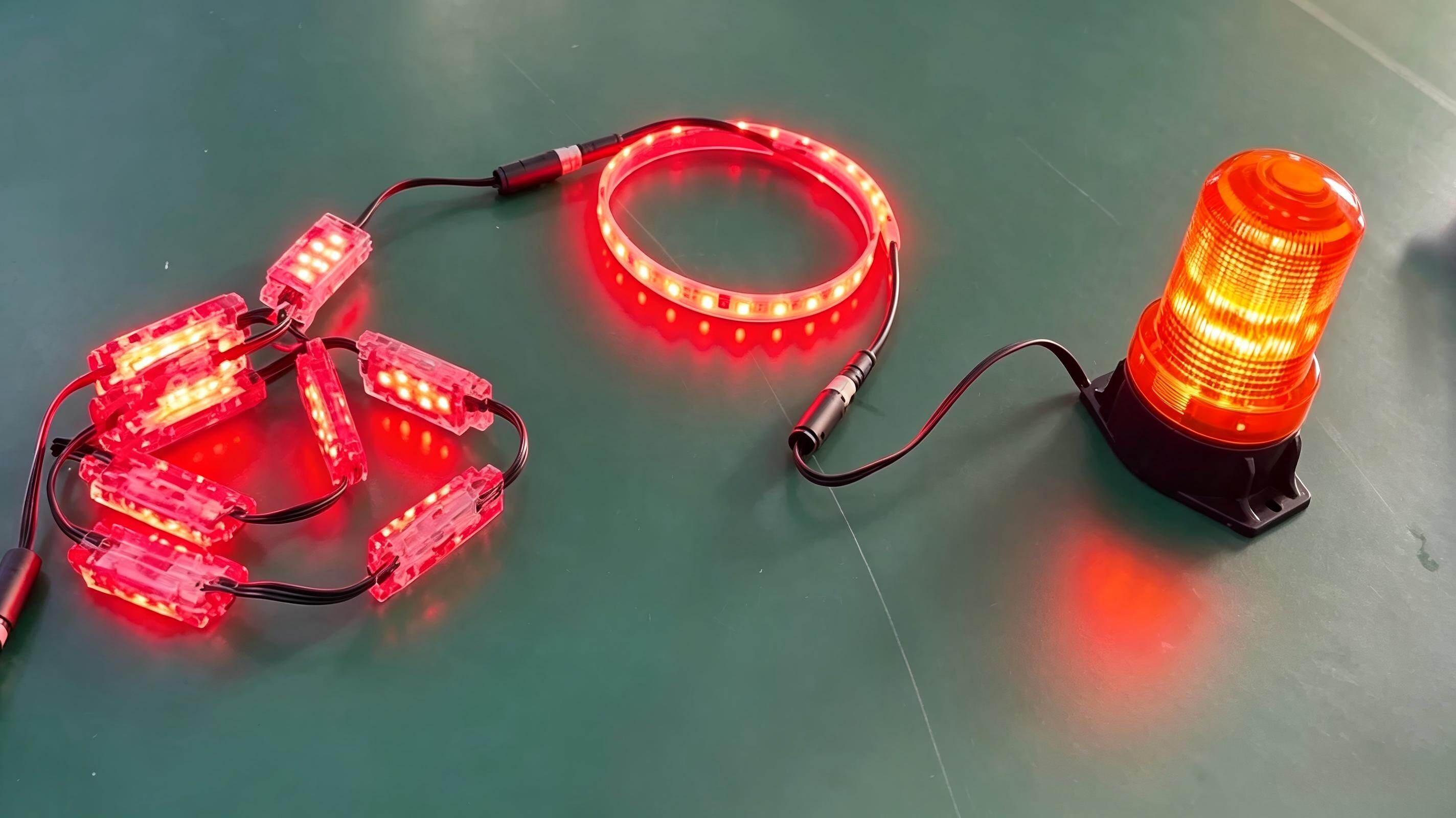

Multi-Product Integration Challenge – Delivering a Coordinated LED Solution

A project case study on a multi-product LED integration challenge — coordinating custom strobe warning lights, pixel modules, and additional components into a single, working system for Benjamin.

Read case study

Custom Signage for YETI PUFF: Canadian Retail Project

A project case study on custom signage for YETI PUFF in Canada — featuring 50mm pixel globe lights, IP68 waterproofing, and full-color programmable effects for outdoor channel letters.

Read case study

Small Renovation in the Philippines – Complete Lighting & Component Solution

A project case study showing how we coordinated aluminum channels, downlights, and fans into a single, project-ready package for a renovation in the Philippines.

Read case study

Custom DMX-Controlled Winch Project – A Challenging Journey from Concept to Reality

A custom DMX-controlled winch project for stage automation. Limited experience in this area? We partnered with a specialized manufacturer and delivered a solution that exceeded client expectations.

Read case study

Featured Project: Custom Signage for Canadian Client

A comprehensive look at how we delivered a complete LED signage solution from design to installation

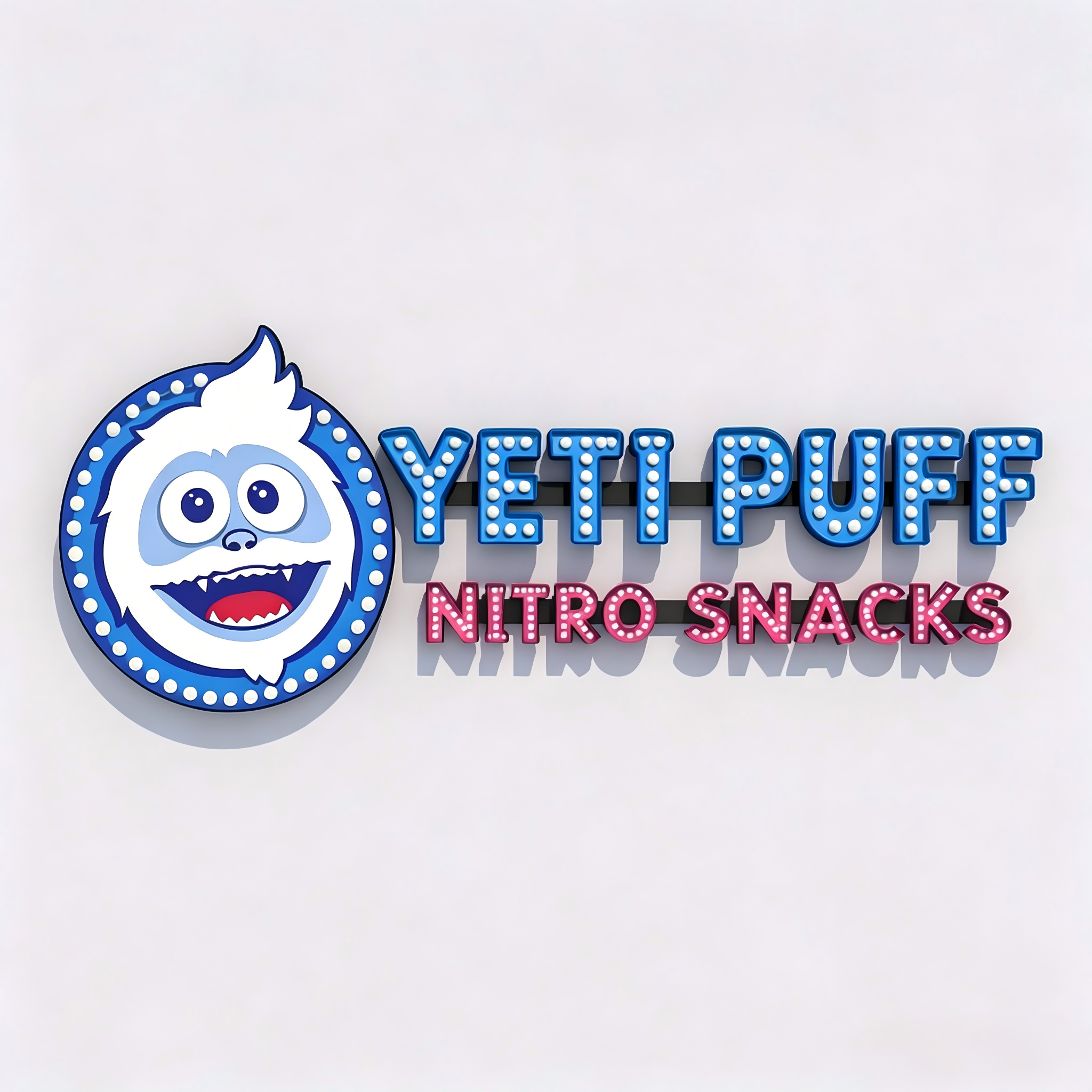

Custom LED Signage with Backlit Illuminated Channel Letters

1. Project Background

Darren, a client from Canada, approached us with a comprehensive signage requirement. The project included single color Front-lit LED signage modules, 26mm/50mm pixel point lights for storefront branding, LED power supplies, controllers, and complete signage installation kits. This was a complex multi-component project requiring precise coordination and technical expertise.

2. Challenge / Requirement

Darren provided detailed dimension drawings for the channel letters and signage components. Our challenges included:

•Creating precise 3D design renderings based on technical drawings
•Selecting appropriate painting materials and color codes for different components
•Developing special drilling solutions for unique mounting requirements
•Ensuring the final front-lit signs and backlit elements perfectly matched Darren's vision

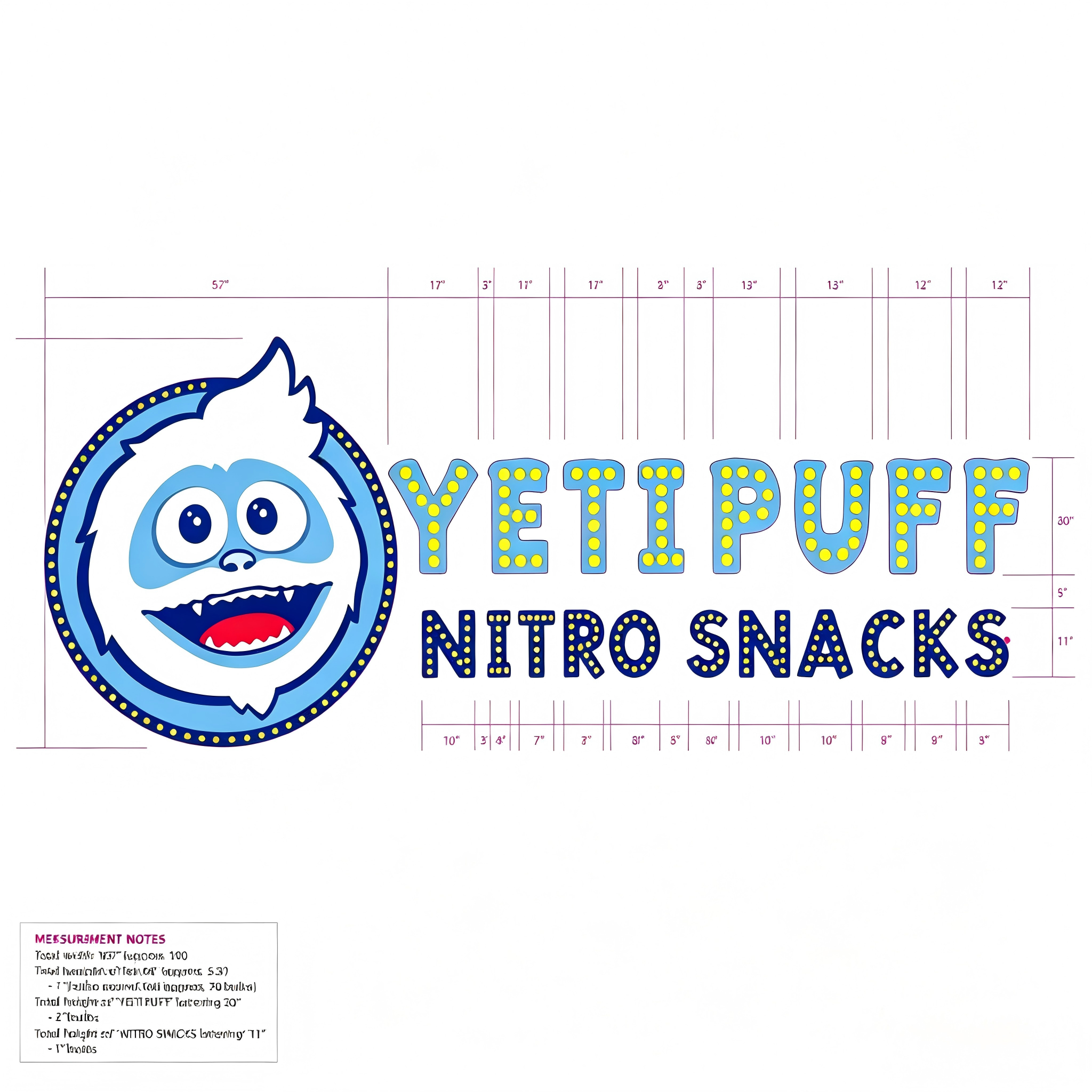

LED Signage 3D Design and Technical Drawings

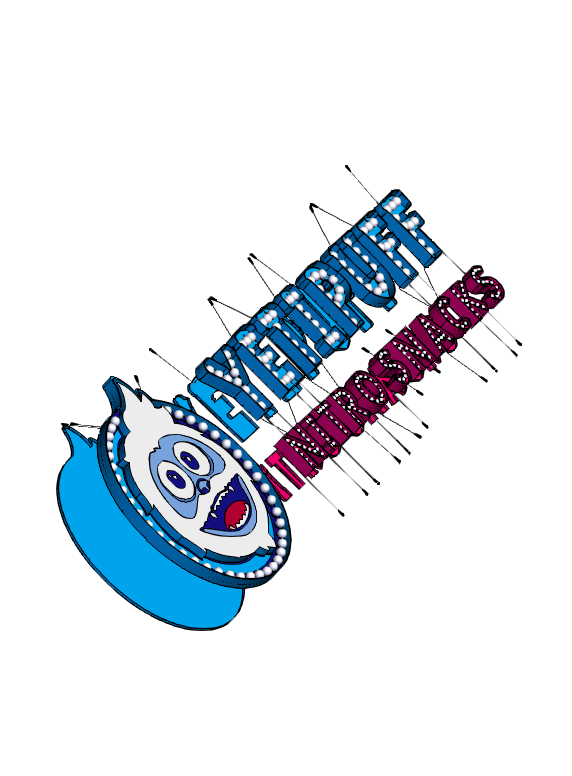

LED Signage Modules Production and Quality Testing

3. Our Solution

Free 3D Design & Revisions

We provided complimentary 3D renderings and worked through multiple revision cycles until Darren was completely satisfied with the design of the custom LED signage system.

Transparent Payment Terms

50% deposit to initiate production, with clear milestones and deliverables at each stage.

Real-time Production Updates

Every production phase was documented and shared with Darren in real-time, ensuring complete transparency and peace of mind throughout the manufacturing of the LED signage modules and all components.

Final Testing & Video Documentation

After installation testing, we captured comprehensive video footage of the complete backlit illuminated signs and channel letters in operation. Final payment was collected only after Darren confirmed complete satisfaction with the results.

4. Result / Benefit

The project was successfully completed, and both parties were very satisfied. Darren received a complete, high-quality custom LED signage solution that exceeded expectations, including custom character head and custom letter signs YETI PUFF/NITRO SNACKS, single color front-lit LED modules, addressable LED point lights, and other supporting components.

"We're looking forward to more collaborations in the future. The professionalism and attention to detail made all the difference."

— Darren, Canada

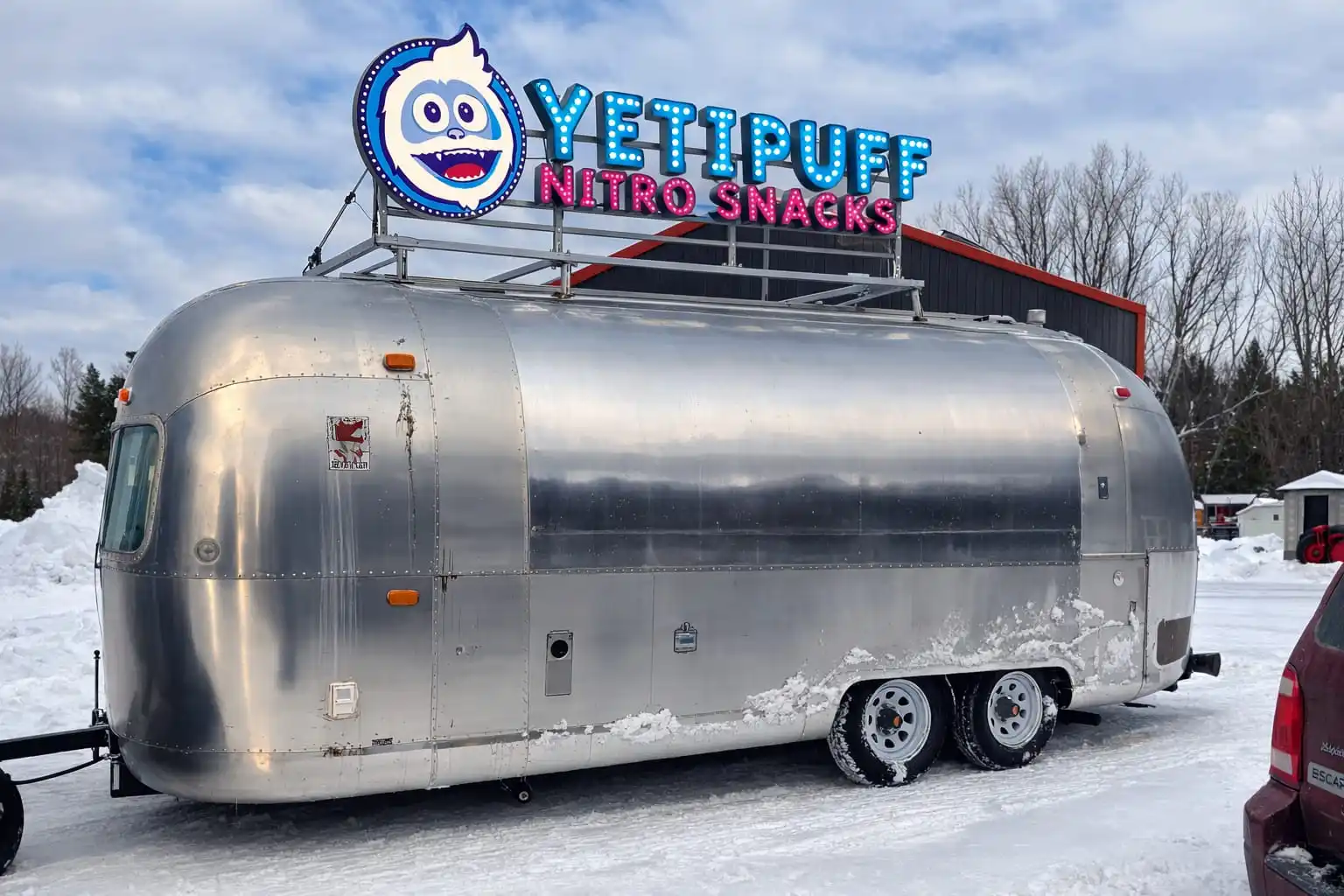

Completed LED Signage Installation with Satisfied Client

Featured Case Study: Multi-Product Integration Challenge

How we solved complex wiring and compatibility issues for a custom LED project

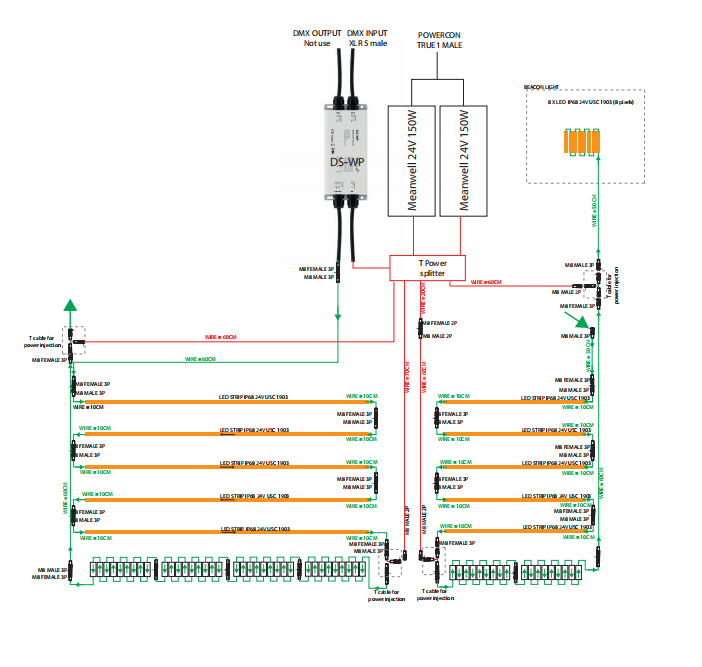

LED Strip Lights and Pixel Modules for Custom Integration Project

The Challenge

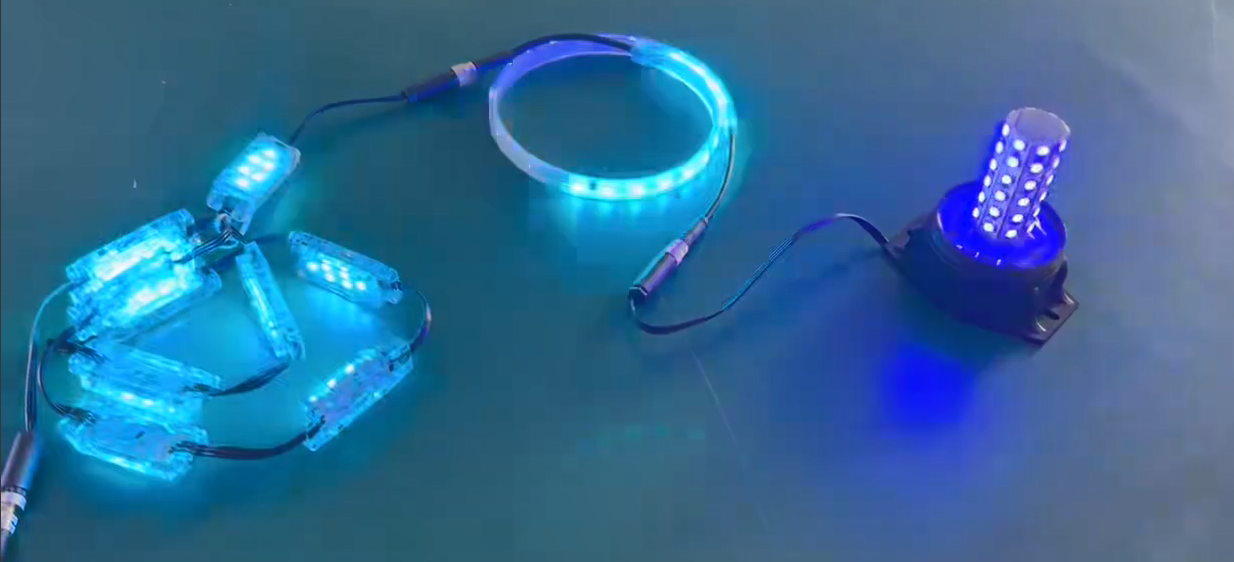

A client needed a custom lighting solution combining three different LED products: DC24V UCS1903 RGB LED Strip Lights, Rotating Lights, and Pixel Module Chain. All three products needed to work together seamlessly following the client's specific wiring diagram.

Key Challenges:

•Wiring incompatibility between M8 terminals and flat wires
•Chip compatibility risk across multiple manufacturers
•Terminal wire limitations (3-core only)
•Inconsistent cable types causing installation confusion

Our Solutions

1. Adapting Terminal Wires

Switched to modular M8 terminals with flat wires (4.8-4.9mm width) and applied potting for waterproofing requirements.

2. Standardizing Chips

Insisted all three products use the same UCS1903 chip from a single manufacturer, eliminating communication risks.

3. Creative Terminal Workaround

Used Type A (3-core) for signal+power and Type B (2-core, data unsoldered) for power-only connections.

4. Cable Standardization

Replaced transparent flat wires with black flat wires matching the rotating lights for consistency.

Key Takeaways for Custom LED Projects

Wiring Incompatibility

Verify connector types early

Multi-Vendor Chips

Standardize from single source

Terminal Limitations

Creative workarounds solve gaps

Client Oversights

Test thoroughly, find what they missed
