Published: September 2026 | Category: Client Stories
The Story at a Glance
Client: Robert
Project: Wedding venue signage – MR & MRS sign
Product: Custom 360° 60mm Single White Cabochon Light (2700K, DC24V, 18 LEDs)
Customization: Standard SPI pixel (UCS1903/GS8206) changed to single-white, non-addressable
Outcome: A warm, romantic glow for a wedding celebration
How It Started
When Robert approached us, he needed a lighting solution for a wedding venue signage project — specifically, an MR & MRS sign for a client's wedding.
The goal was simple but important: create a warm, inviting glow that would complement the romantic atmosphere of the event. This wasn't about dynamic color effects or complex programming. It was about reliable, beautiful white light.
The Challenge: From SPI Pixel to Single White
Robert's project could have been served by our standard 60mm SPI pixel cabochon light — commonly featuring UCS1903 or GS8206 ICs for full-color, addressable effects. These are our go-to solutions for dynamic, programmable installations.
But Robert didn't need color-changing or pixel-mapping. He needed something more focused:
Requirement | Why It Mattered |
|---|---|
Warm white only (2700K) | To match the intimate, romantic setting of a wedding |
No IC / non-addressable | Simpler, more reliable for a single-color application |
360° visibility | To be seen clearly from all angles in the venue |
DC24V operation | Safe and efficient for indoor installation |
Compact size | To fit seamlessly into the sign design |
Industry Context: While our standard products often feature SPI-controlled RGB pixels for dynamic color effects, Robert's application required a single white without ICs. This product is versatile and commonly used across various applications — from wedding signage to architectural accents.
Our Solution: A Custom Single-White Cabochon Light
We custom-designed a 360° 60mm Single White Cabochon Light specifically for Robert's wedding signage project.
Feature | Specification |
|---|---|
Product Name | Custom 360° 60mm Single White Cabochon Light |
Diameter | 60mm |
LED Type | SMD5050 |
LED Count | 18 LEDs (12 front + 6 back) |
Color Temperature | WW-2700K (warm white) |
Voltage | DC24V |
Power | 4.32W |
Mounting Hole | 19mm |
Beam Angle | 360° |
Connector | 2-pin separated non-waterproof male/female |
Wire Length | 100mm |
Key Features
1. True 360° Light Distribution
With 12 LEDs on the front and 6 LEDs on the back, this cabochon light provides:
Full, even illumination from every angle
No dark spots or shadows
Wide visibility — ideal for signage and architectural outlines
2. Warm White 2700K – Cozy, Inviting Glow
The 2700K color temperature delivers a soft, warm light that creates a welcoming atmosphere — perfect for:
Wedding and event lighting (Robert's specific application)
Hospitality and retail environments
Decorative signage
Architectural accents
3. No IC / Non-Addressable – Simplified Design
Unlike our standard SPI pixel lights, this custom version does not include an IC. This offers:
Lower cost – fewer components
Simpler installation – no programming required
Reliability – fewer points of failure
Perfect for single-color applications – where dynamic effects are not needed
4. 19mm Mounting Hole – Standard Fit
The 19mm mounting hole is a standard size, making it:
Easy to integrate into existing installations
Compatible with most signage and architectural fixtures
Quick to install with minimal preparation
5. Compact 60mm Diameter – Versatile Size
The 60mm size is large enough to be visible while remaining compact enough for:
Channel letters and signage
Building outlines
Decorative light strings
Wedding and event decorations
The Outcome: A Wedding Sign That Glowed

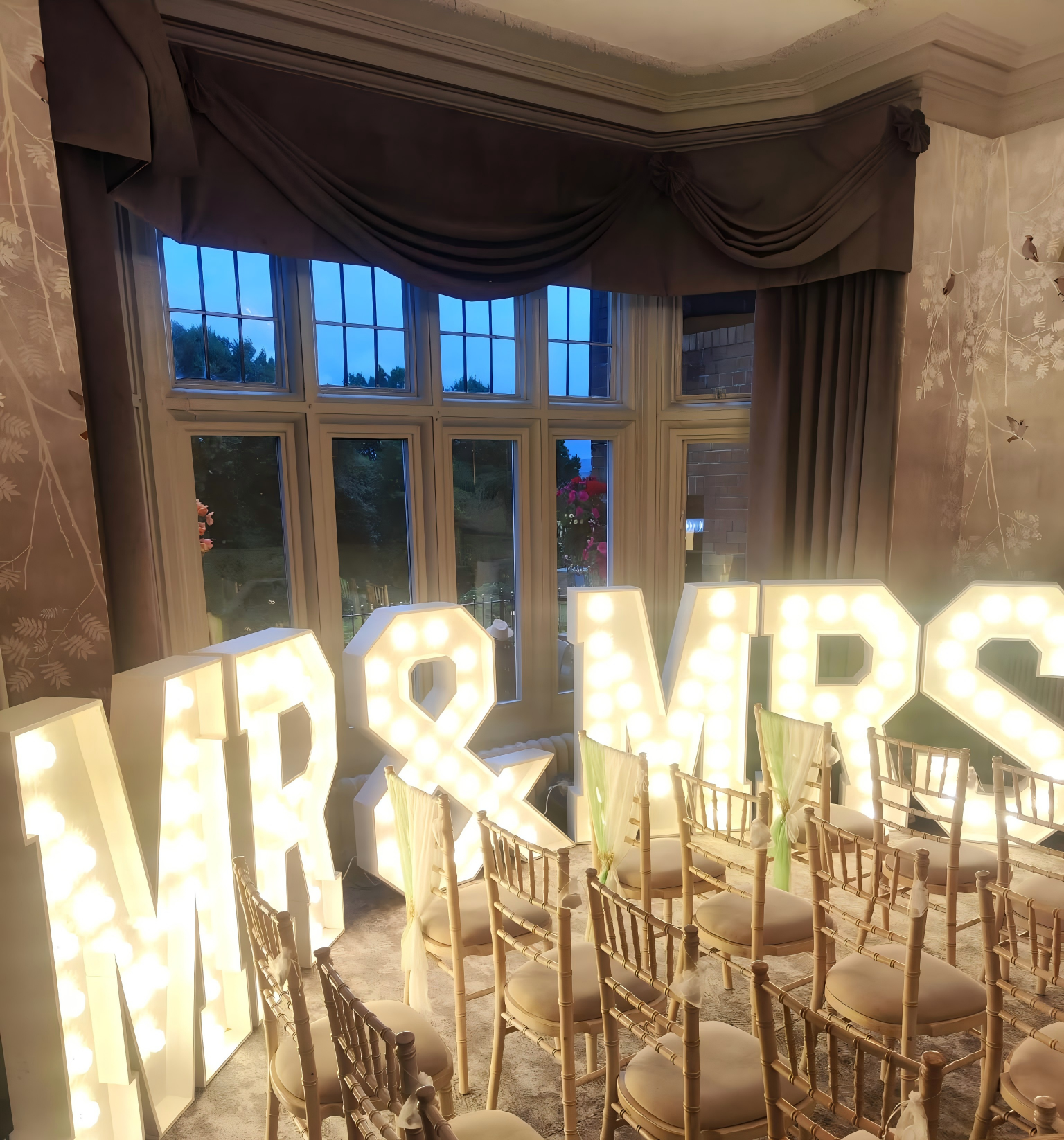

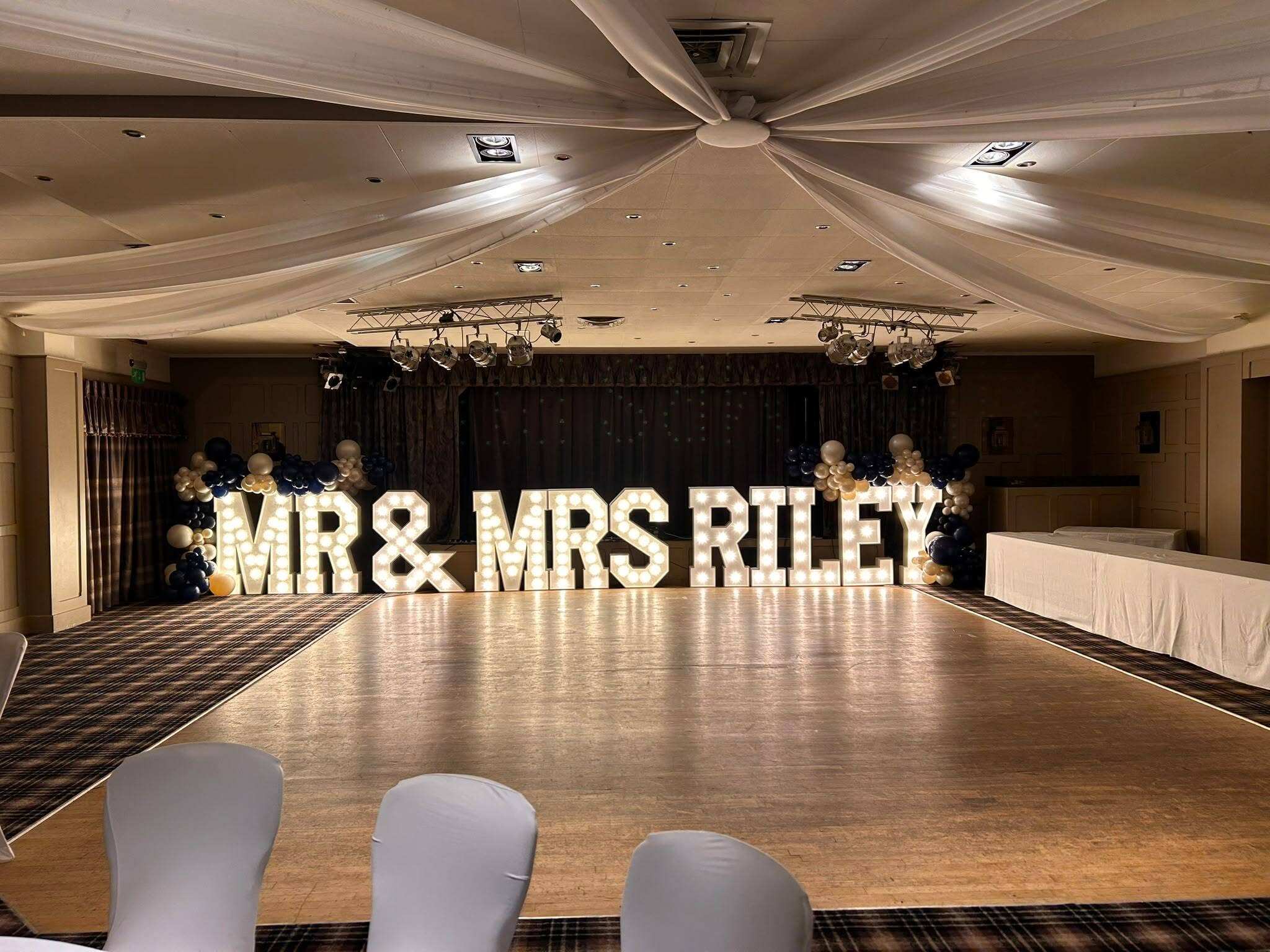

Robert's MR & MRS sign was installed with our custom single-white cabochon lights, creating a warm, romantic glow that complemented the wedding atmosphere.
This product — though originally designed as a standard SPI pixel light — was adapted to meet a specific client need. It's now commonly used in various applications, from wedding signage to architectural accents.
We're honored that our product played a part in such a special celebration.
Why This Project Matters
Factor | Why It Matters |
|---|---|
Flexible customization | We adapted a standard SPI pixel product to a single-white, non-addressable version |
Application-specific design | The 2700K warm white was chosen specifically for a wedding atmosphere |
Simplicity and reliability | No IC meant fewer components and simpler installation |
Real-world impact | The product helped create a memorable moment for a wedding celebration |
Client Feedback
Robert's project was a success — a beautifully lit MR & MRS sign that added warmth and elegance to a wedding venue.
We are grateful for the opportunity to support his project.
