Shenzhen, China – September 2026
This product was created for Jeff, a client who specifically requested the GS series chips for their superior signal transmission capabilities. He needed a lighting solution that would deliver reliable, consistent performance across long distances — and the GS8206/GS8208 delivered exactly that.
ElisaCustom is pleased to announce the release of our best‑selling D22 Round 360° Flex Neon Tube, featuring dual high-density LED strips (2 × 60 LEDs/m) for true 360° illumination. Available in black or gray housings, this neon tube is powered by GS8206 or GS8208 5050 RGB chips, operates at DC12V, and offers signal break‑point continuous transmission for enhanced reliability.
Ideal for decorative lighting, signage, bar and club environments, retail displays, and artistic installations, the D22 neon tube delivers vibrant, uniform light in a sleek round profile.
What Makes This D22 Flex Neon Tube Unique?
Feature | Specification |
|---|---|
Product Name | D22 Round 360° Flex Neon Tube |
Housing Colors | Black / Gray |

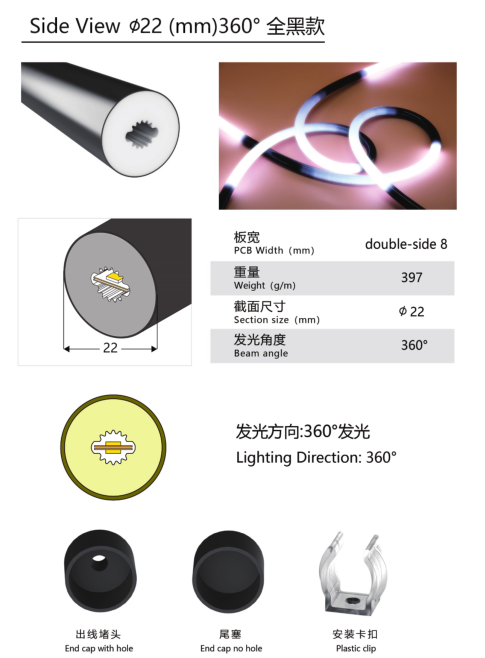

Diameter | 22mm |
Internal LED Strips | 2 strips (back‑to‑back) |
LED Type | 5050 RGB (GS8206 / GS8208 built‑in) |
LED Density (per strip) | 60 LEDs/m |
Total LED Density | 120 LEDs/m (2 strips combined) |
Voltage | DC12V |
PCB Width | 8mm / 10mm |
PCB Color | White (recommended) |
Copper Thickness | 2oz |
Lifespan | 50,000 hours |
Working Temperature | -20°C to +60°C |
Storage Temperature | -30°C to +80°C |
Max Tube Length | 3m (recommended) |
Key Features
1. Dual Strips – True 360° Illumination
Unlike standard neon tubes with a single strip that emits light in one direction, the D22 tube features two LED strips mounted back‑to‑back:
2 × 60 LEDs/m = 120 LEDs/m total
360° light emission — no dark spots or blind angles
Uniform, continuous glow from every angle
2. Gray Housing – Optimized for Brightness
We chose gray housing over pure black for a specific reason:
Housing Color | Light Output | Best For |
|---|---|---|
Gray | Higher brightness, better light transmission | Applications where maximum brightness is desired |
Black | Sleek, modern appearance | Applications where the tube should blend into dark backgrounds |
Why Gray? Through our internal testing, we found that gray housing provides significantly higher brightness than pure black — delivering better light transmission while still maintaining a sleek, professional appearance. This is why we recommend gray for projects where brightness is a priority.
3. Signal Break‑Point Continuous Transmission
The GS8206/GS8208 chips support break‑point continuous transmission:
Single LED failure does not affect downstream LEDs — the signal continues
Redundant signal path ensures reliable performance in long installations
Reduced maintenance — no need to replace entire sections for one faulty LED
4. High‑Quality PCB – White, 2oz Copper
Feature | Benefit |
|---|---|
White PCB | Reflects light better — improves brightness and uniformity |
2oz copper thickness | Better heat dissipation, reduced voltage drop |
5. Flexible Length Options – Up to 3m
Length | Best For |
|---|---|
1m | Small accents, tight spaces |
2m | General decorative lighting |
3m | Longer runs, continuous outlines |
Custom lengths are available upon request (max 3m recommended for optimal performance).
Technical Specifications
Internal LED Strips
Parameter | Value |
|---|---|
LED Chip | Built‑in GS8206 / GS8208 5050 RGB |
LED Density (per strip) | 60 LEDs/m |
Strips per tube | 2 (back‑to‑back) |
Total LEDs | 120 LEDs/m |
Voltage | DC12V |
PCB Width | 8mm / 10mm |
PCB Color | White (recommended) |
Copper Thickness | 2oz |
Neon Tube
Parameter | Value |
|---|---|
Diameter | 22mm |
Housing Colors | Black / Gray |
Tube Length | 1m / 2m / 3m (customizable) |
Lifespan | 50,000 hours |
Working Temperature | -20°C to +60°C |
Storage Temperature | -30°C to +80°C |
Applications
Application | Why This Tube Fits |
|---|---|
Bars & clubs | 360° glow, vibrant colors, dynamic effects |
Retail stores | Eye‑catching displays, modern aesthetics |
Signage | Uniform light, break‑point continuity for reliability |
Artistic installations | Flexible, sleek design |
Advertising displays | High brightness, programmable effects |
Event decorations | Customizable lengths, easy installation |
Interior design | Contemporary lighting accents |
Installation Overview
Step | Action |
|---|---|
1 | Choose the desired housing color (black or gray) and length |
2 | Insert the dual LED strips into the D22 neon tube |
3 | Connect to a DC12V power supply and compatible controller |
4 | Secure using appropriate mounting clips |
5 | Power on and enjoy 360° illumination |
Summary
Advantage | Benefit |
|---|---|
Dual strips (2 × 60 LEDs/m) | True 360° illumination — no dark spots |
GS8206/GS8208 chips | Break‑point continuous transmission — single failure doesn't stop the show |
Gray housing | Higher brightness than black — tested and proven |
Black housing | Sleek, modern appearance for dark backgrounds |
White PCB with 2oz copper | Better brightness, heat dissipation, and uniformity |
DC12V operation | Safe, reliable, easy to integrate |
Flexible lengths (1–3m) | Tailored to your installation needs |
50,000‑hour lifespan | Long‑term reliability |
Availability
The best‑selling D22 Round 360° Flex Neon Tube (GS8206/GS8208, black/gray housing) is available for order now. Custom lengths, PCB widths, and other specifications are available upon request.
👉 Write to me for samples, technical support, or a quote.
