Shenzhen, China – September 2026
ElisaCustom is pleased to announce the release of our new Custom D25 Pixel Neon Tube (Model: XXA-NEON-D25-UCS5603-24V) , featuring 240 high-density SMD2835 RGB LEDs per meter, UCS5603 pixel control, and a sleek white neon housing. With DC24V operation, 23W/m power consumption, and a 5‑meter continuous length, this tube delivers vibrant, uniform color with individual pixel addressability.
Ideal for architectural outlining, signage, event decorations, and retail displays, the XXA-NEON-D25-UCS5603-24V offers professional‑grade performance with reliable waterproof connectors and additional power leads for extended runs.
What Makes This D25 Pixel Neon Tube Unique?
Feature | Specification |
|---|---|
Product Name | Custom D25 Pixel Neon Tube |
Model | XXA-NEON-D25-UCS5603-24V |
LED Type | 240 × SMD2835 RGB LEDs |
LED Density | 240 LEDs per meter |
IC Type | UCS5603 (pixel‑addressable) |
Voltage | DC24V |
Power | 23W per meter |
Housing Color | White (standard) / Black (available) |
Length | 5 meters per roll |
Connector | 4‑pin waterproof male/female with additional power leads (red/black wire) |
Key Features
1. High Density – 240 LEDs/m
With 240 SMD2835 RGB LEDs per meter, this neon tube delivers:
Exceptional brightness for high‑visibility applications
Vibrant, saturated colors with smooth transitions
Seamless, continuous light – no visible dark spots
2. UCS5603 High‑Grayscale Chip – Superior Performance
This product features the UCS5603 high‑grayscale chip, which offers:
256 grayscale levels per channel for smooth, professional colour transitions
Enhanced color depth – richer and more accurate color reproduction
Industry‑leading performance – the UCS5603's internal design allows for extended continuous runs
Key Advantage: Thanks to the UCS5603's unique internal structure, this neon tube can achieve up to 10 meters per run without voltage drop – a significant improvement over conventional products, which are typically limited to 3 meters per run.
3. DC24V Operation – Long‑Run Performance
Operating at DC24V offers:
Reduced voltage drop – consistent brightness over longer distances
Efficient power consumption (23W/m)
Compatibility with standard 24V power supplies
4. 10‑Meter Continuous Run – Industry‑Leading Capability
Feature | Conventional Products | Our D25 Neon Tube |
|---|---|---|
Maximum run length | ~3 meters | Up to 10 meters |
Voltage drop | Significant | Minimal |
Brightness consistency | Drops over distance | Consistent |
Power injection points | Frequent | Fewer required |
Why this matters: Longer runs mean fewer connections, reduced installation time, and a cleaner, more reliable installation.

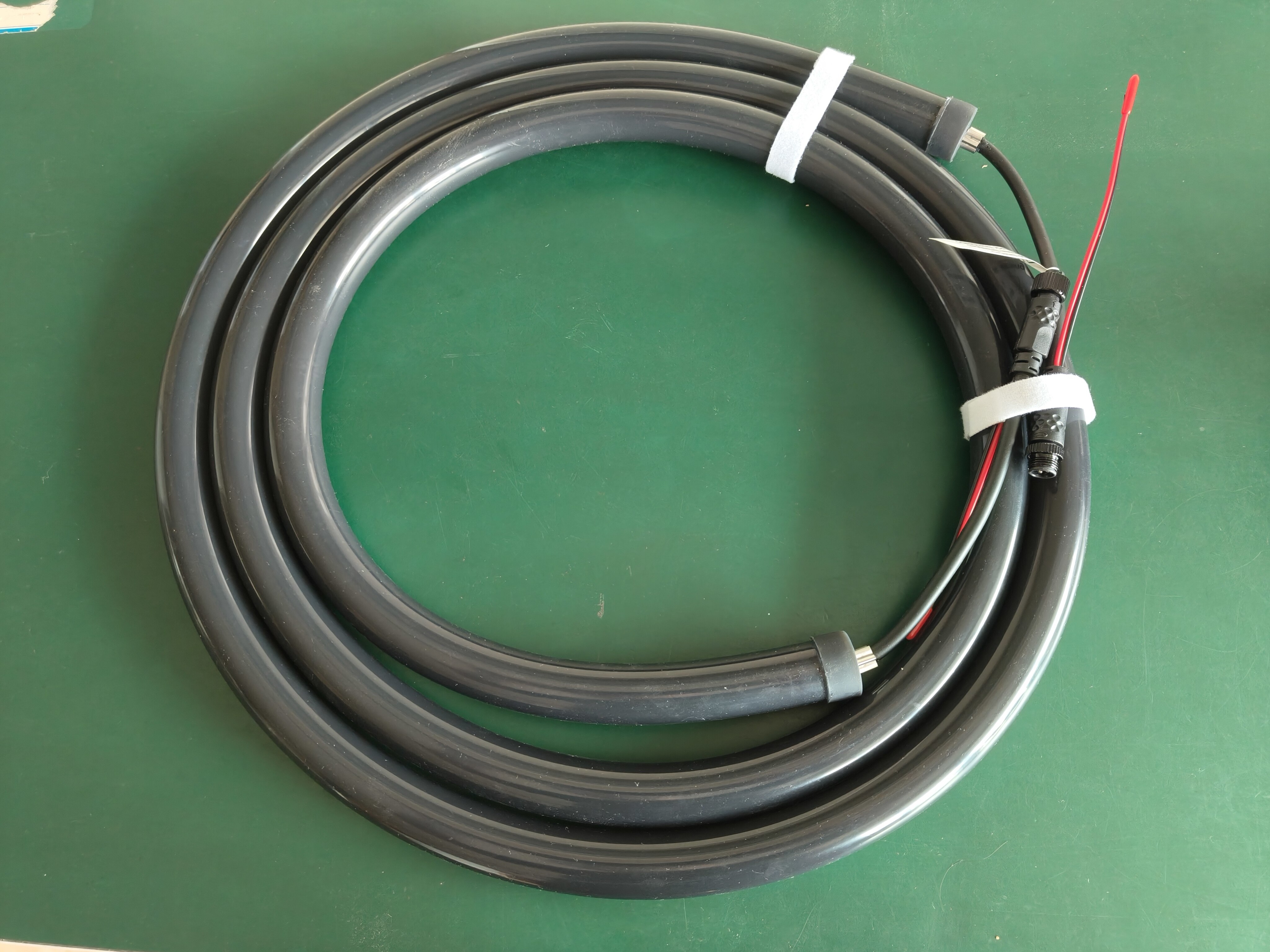

5. Two Color Options – White or Black Housing
Housing Color | Best For |
|---|---|
White | Clean, modern, architectural applications |
Black | Discreet installations, dark backgrounds |
Both options offer the same performance and durability – choose the one that best fits your project's aesthetic.
6. 4‑pin Waterproof Connectors with Additional Power Leads
The tube features 4‑pin waterproof male/female connectors with additional power leads (red/black wire), providing:
Reliable, weather‑resistant connections – suitable for outdoor use
Easy daisy‑chaining – extended runs with minimal wiring
Power injection capability – additional leads allow for mid‑run power feeding to maintain brightness over long distances
7. 5‑Meter Length – Extended Coverage
The 5‑meter roll provides:
Extended continuous runs – fewer connections and installation points
Reduced installation time – less splicing and soldering
Flexibility – can be cut to custom lengths as needed
Technical Specifications
Parameter | Value |
|---|---|
Product Name | Custom D25 Pixel Neon Tube |
Model | XXA-NEON-D25-UCS5603-24V |
LED Type | 240 × SMD2835 RGB |
LED Density | 240 LEDs/m |
IC Type | UCS5603 (high‑grayscale) |
Voltage | DC24V |
Power | 23W/m |
Housing Color | White or Black |
Max Continuous Run | Up to 10 meters (no voltage drop) |
Length | 5m per roll |
Connector | 4‑pin waterproof M/F + additional power leads (red/black) |
Applications
Application | Why This Tube Fits |
|---|---|
Architectural outlining | High density, white/black housing, DC24V |
Signage & channel letters | Pixel control, vibrant colors |
Event & party decorations | Dynamic effects, easy installation |
Retail displays | Eye‑catching, high brightness |
Outdoor installations | Waterproof connectors, additional power leads |
Real Customer Case Studies:
Client Story: When Customs Delays Hit – Trust and Persistence Still Delivered
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout and determine the required length |
2 | Cut at the designated cutting point if needed |
3 | Connect the 4‑pin waterproof connectors for signal and main power |
4 | Use the additional power leads (red/black) for power injection at mid‑points to maintain brightness |
5 | Connect to a compatible SPI controller and DC24V power supply |
6 | Power on and test |
Note: The additional power leads allow for easy power injection, ensuring consistent brightness over extended runs.
Summary
Advantage | Benefit |
|---|---|
240 LEDs/m | High density, vibrant colors |
UCS5603 high‑grayscale chip | Superior color depth, smooth transitions |
Up to 10m continuous run | Industry‑leading – no voltage drop |
White or black housing | Two color options for aesthetic flexibility |
DC24V operation | Long runs, reduced voltage drop |
5‑meter length | Extended coverage, fewer connections |
4‑pin waterproof connectors | Reliable, weather‑resistant connections |
Additional power leads | Easy power injection for long runs |
Availability
The Custom D25 Pixel Neon Tube (XXA-NEON-D25-UCS5603-24V) is available for order now. Custom lengths and configurations are available upon request.
