Custom 3W SPI LED Driver Module Project – Lighting the Stage for a Spectacular Performance
Shenzhen, China – September 2026
Every great performance needs more than just talent – it needs the right visual atmosphere. When Simon approached us for a custom lighting solution, he wasn't just buying components. He was building an experience.

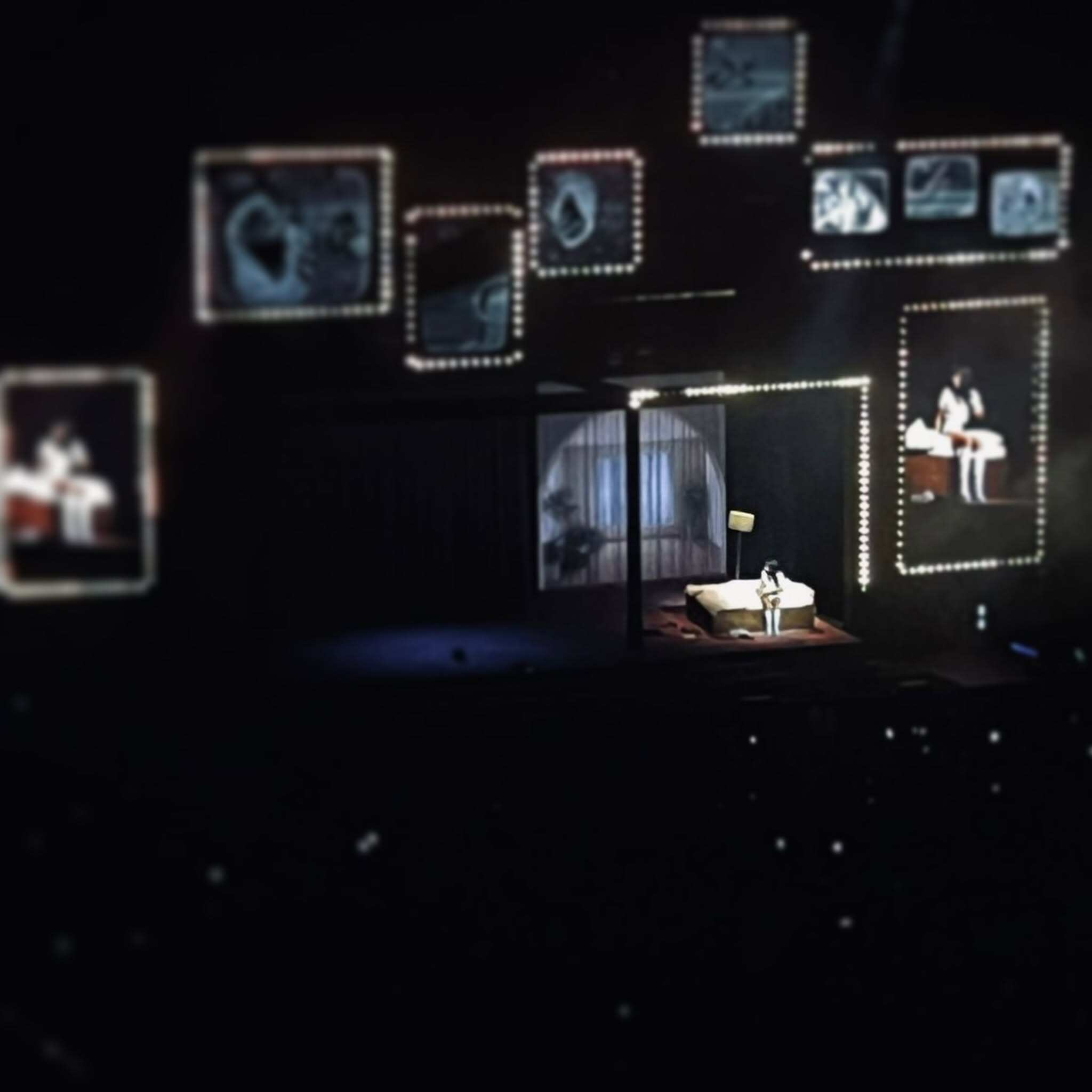

Simon needed seven custom‑made golden frames for an upcoming production. Each frame was a work of art in itself – beautifully decorated with ornamental borders, housing hidden light boxes inside, and embedding pixel point lights for our 12V RGBW 4000K LED strips.
But the finishing touch – the element that would bring these frames to life – was the 3W RGB WS2811 module on the outer edge of each frame. This is where our XXA‑MODULE‑3W came in.
The Vision: Seven Golden Frames for a Stage Production
Simon's project was ambitious and detail‑oriented:
Element | Specification |
|---|---|
Frames | 7 custom‑made golden frames |
Design | Ornamental borders, decorative finish |
Internal lighting | Hidden light boxes with 12V RGBW 4000K LED strips |
Edge lighting | 3W RGB WS2811 modules on the outer edge |
Control | SPI (UCS1903) |
Application | Live stage performance – dynamic visual effects |
Each frame was designed to be a statement piece. The golden finish provided a luxurious, eye‑catching appearance, while the integrated lighting would allow for dynamic, color‑changing effects synchronized with the performance.
Our Solution: XXA‑MODULE‑3W – Compact Power for Edge Lighting

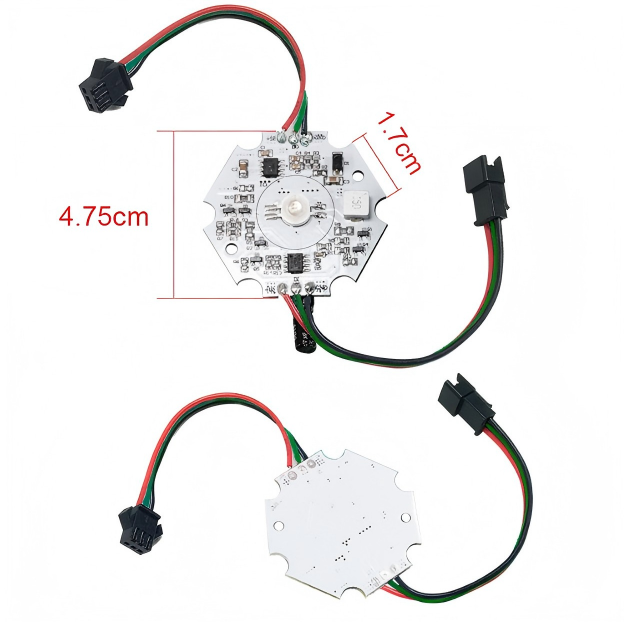

The XXA‑MODULE‑3W is a compact yet powerful SPI LED driver module, specifically designed for projects that require reliable, addressable RGB control in a small form factor.
Module Specifications:
Feature | Specification |
|---|---|
Model | XXA‑MODULE‑3W |
Power | 3W |
Control Protocol | SPI (UCS1903) |
Voltage | DC12V |
Dimensions | 4.75 × 1.7 cm |
Connectors | 3‑pin JST M/F connector cable (input/output) |
Included | Extra 3‑pin JST female connector |
Color Output | Full RGB (addressable) |
Why this module was the perfect fit:
Feature | Benefit for Simon's Project |
|---|---|
UCS1903 SPI control | Precise, individual addressability for each module |
Compact 4.75×1.7cm size | Easily integrated into the frame's outer edge without being intrusive |
3‑pin JST connectors | Simple daisy‑chaining – easy to connect multiple modules |
3W power output | Sufficient brightness for edge effects without excessive power draw |
DC12V operation | Compatible with the 12V RGBW 4000K LED strips used inside the frames |
Installation: Modules on the Outer Edge
The modules were strategically placed on the outer edge of each frame, creating a continuous ring of addressable RGB light. This allowed for:
Dynamic chases – light flowing around the frame
Color transitions – smooth changes between multiple colors
Scene synchronization – all seven frames working together for cohesive visual effects
Performance‑ready control – programmed to match the rhythm and mood of the show
Why This Project Worked
Element | How It Contributed |
|---|---|
Clear vision | Simon knew exactly what he wanted – golden frames with integrated lighting |
Flexible customization | We matched the module to his specific requirements (12V, SPI, compact size) |
Compatible components | The module worked seamlessly with the 12V RGBW 4000K LED strips |
Scalable design | Seven frames, each with multiple modules, all controlled by a single SPI system |
Pre‑performance testing | All components were tested before delivery to ensure reliable operation |
Applications for the XXA‑MODULE‑3W
Application | Why It Fits |
|---|---|
Stage and theatre | Compact size, precise control for edge lighting |
Architectural accents | Easy integration into frames, trim, and borders |
Custom props and set pieces | Hidden, low‑profile installation |
Retail displays | Eye‑catching RGB effects for product showcases |
Decorative frameworks | Ideal for ornamental structures |
Pixel‑mapped installations | SPI control for individual addressability |
Key Features of the XXA‑MODULE‑3W
1. UCS1903 SPI Control – Individual Addressability
The UCS1903 chip enables:
Independent control of each module
256 grayscale levels per channel for smooth colour transitions
Dynamic effects – chasing, flowing, gradients, and animations
2. Compact Design – 4.75 × 1.7 cm
The small footprint allows for:
Discreet installation – fits into tight spaces
Minimal visual impact – preserves the clean look of the golden frames
Flexible positioning – can be placed exactly where needed
3. Easy Daisy‑Chaining – 3‑pin JST Connectors
The input and output JST connectors make it simple to:
Connect multiple modules in series
Extend the length of the installation
Reduce wiring complexity
4. 3W Output – Balanced Brightness
With 3W power, the module provides:
Sufficient brightness for edge effects
Energy‑efficient operation
Compatibility with standard 12V power supplies
Summary
Advantage | Benefit |
|---|---|
UCS1903 SPI control | Individual addressability, 256 grayscale |
Compact 4.75×1.7cm size | Fits into tight spaces |
3‑pin JST connectors | Easy daisy‑chaining |
3W power | Balanced brightness for edge lighting |
DC12V operation | Compatible with standard systems |
Flexible customization | Tailored to Simon's project requirements |
