When it comes to outdoor Christmas and decorative lighting, the C9 bulb is a classic. But standard C9 strings often use 5050 RGB LEDs, which have limitations when it comes to long‑term outdoor reliability.
We took a different approach.

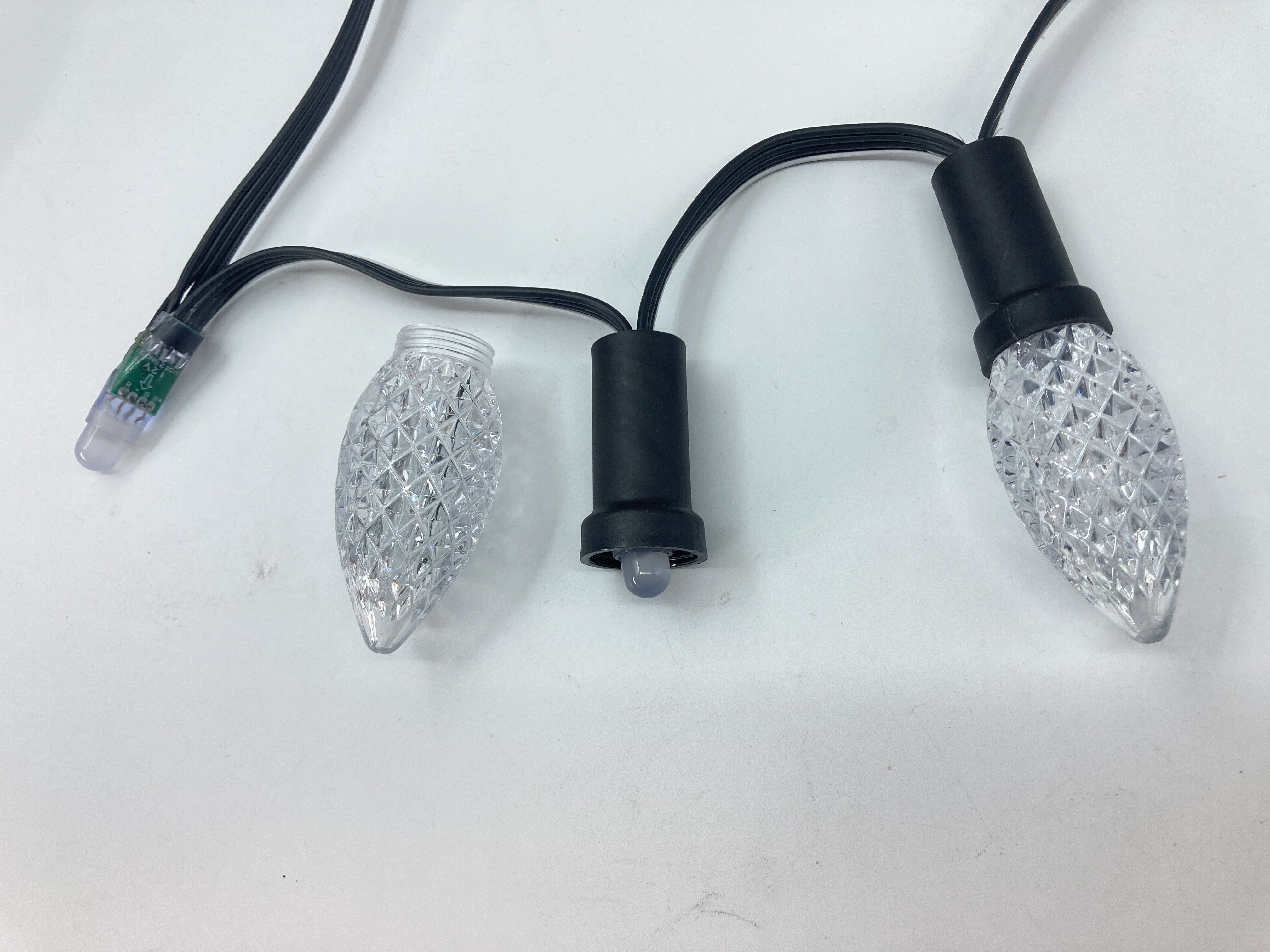

For our custom C9 light strings, we use F8 LEDs — a design commonly found in 12mm exposed LED strings. This small change makes a significant difference in performance, especially for outdoor installations.
The F8 Advantage: Why We Chose It Over 5050 RGB
Feature | Conventional 5050 RGB | Our F8 LED |
|---|---|---|
Waterproofing | Standard seal | Superior – designed for exposed outdoor use |
Durability | Moderate | High – better resistance to moisture ingress |
Typical Application | Indoor / protected outdoor | Outdoor – rain, snow, and harsh conditions |
Sealing Capability | Limited by package design | Enhanced – allows for more effective encapsulation |
Industry Context: Most standard C9 Christmas light strings on the market use 5050 RGB LEDs. However, these are not ideal for long‑term outdoor exposure. The F8 LED, commonly used in 12mm exposed LED strings, offers a tighter seal and better protection against rain, snow, and humidity — making it the preferred choice for permanent or extended outdoor installations.
What Makes This Custom C9 String Unique?
Feature | Specification |
|---|---|
Product Name | Custom GS8208 C9 Christmas Light String |
Bulb Type | C9 (classic Christmas bulb shape) |
Diameter | 23mm |
LED Type | F8 LED (not conventional 5050 RGB) |
IC Type | GS8208 (individually addressable) |
Voltage | DC12V |
Power | 0.3W per bulb |
Beam Angle | 270° |
Luminous Flux | 8 lm per bulb |
IP Rating | IP67 (waterproof for outdoor use) |
Bulbs per Chain | 50 pcs (customizable) |
Spacing | 12cm (standard, customizable) |
Connector | Waterproof male/female |
Lifespan | 50,000 hours |
Key Features
1. F8 LED – Superior Waterproof Performance
Unlike conventional C9 strings that use standard 5050 RGB LEDs, our C9 bulbs feature F8 LEDs (commonly used in 12mm exposed LED strings). This design offers:
Benefit | Why It Matters |
|---|---|
Better sealing | The F8 LED allows for more effective waterproof encapsulation |
Enhanced durability | Superior resistance to moisture ingress |
Proven reliability | Field‑tested in outdoor exposed applications |
Why F8 over 5050? The F8 LED's structure is specifically designed for outdoor string light applications, providing a tighter seal and better protection against rain, snow, and humidity compared to standard 5050 RGB LEDs.
2. GS8208 IC – Individually Addressable Pixels
The GS8208 IC provides:
Individual pixel control – each bulb can display independent colors
256 grayscale levels per channel for smooth, vibrant colour transitions
Break‑point continuation – if one bulb fails, the signal continues down the line
Reliable data transmission – stable performance in long strings
3. C9 Classic Design – Festive & Versatile
The C9 bulb shape is a holiday classic, offering:
Familiar festive appearance – perfect for Christmas and seasonal displays
23mm diameter – visible and impactful from a distance
Optical design – engineered for wide light distribution
4. 270° Beam Angle – Wide Illumination
The 270° beam angle ensures:
Light visible from multiple angles
Even illumination across the bulb surface
Maximum visual impact – ideal for tree wrapping, rooflines, and outdoor displays
5. IP67 Waterproof – Outdoor‑Ready
With an IP67 rating, this string is:
Fully dust‑tight
Protected against temporary immersion (up to 1 meter for 30 minutes)
Suitable for outdoor use – rain, snow, and harsh weather conditions
6. Customizable Length and Configuration
As a flexible customization product, we offer:
Adjustable spacing – standard 12cm, but can be customized
Variable chain length – from 25 to 100+ bulbs
Custom wire colors – to match installation requirements
Custom connector types – to suit your existing system
Why Choose Our F8‑Based C9 String?
Advantage | Benefit |
|---|---|
F8 LED | Superior waterproof performance for outdoor use |
GS8208 IC | Individual pixel control, break‑point continuation |
IP67 waterproof | Reliable in rain, snow, and harsh conditions |
C9 classic design | Festive appearance, wide visibility |
270° beam angle | Uniform illumination from multiple angles |
0.3W per bulb | Energy‑efficient, low operating cost |
Customizable | Spacing, length, wire color, and connectors |
Applications
Application | Why This String Fits |
|---|---|
Christmas decorations | Classic C9 design, vibrant colors, IP67 |
Rooflines and eaves | 270° beam, wide visibility |
Tree wrapping | Flexible, individually controlled pixels |
Outdoor events and festivals | Waterproof, durable, customisable |
Architectural accents | Year‑round decorative lighting |
Commercial displays | Eye‑catching, high brightness |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout and determine the number of strings needed |
2 | Connect waterproof connectors between strings |
3 | Secure the string using appropriate clips or hooks |
4 | Connect to a compatible SPI controller and DC12V power supply |
5 | Power on and test |
Looking for Custom Christmas Lighting?
This project demonstrates our ability to customize a classic C9 string with enhanced components for superior outdoor performance.
Whether you need custom spacing, specific LED types, or special connectors, we can help.
