At ElisaCustom, we believe that every custom project tells a story. Some are straightforward. Others require us to dig deep, test thoroughly, and adapt to real-world conditions.
This is one of those stories.
Seb is a truly wonderful person. During our conversations, he shared so many beautiful photos of France — it was absolutely inspiring! His warmth and trust made this project even more meaningful.
Seb approached us with a vision: he wanted S14 Festoon bulbs with DMX RGBW control — not the standard DC12V GS8206 configuration with 3×5050 RGB LEDs that most suppliers offer.
Our standard version operates on SPI 12V with GS8206, but Seb specifically needed 12V DMX RGBW. To meet his requirements, we custom‑designed the PCB to accommodate the DMX chipset and RGBW configuration.
What made this project even more remarkable? Seb trusted us completely. Without requesting a sample, he placed the bulk order directly — a testament to the confidence he had in our ability to deliver.
Here is how we navigated the process.
The Challenge: Beyond the Standard Configuration
The standard S14 Festoon bulb uses:
Parameter | Standard Configuration |
|---|---|
IC chip | GS8206 |
Voltage | DC12V |
LED type | 3×5050 RGB |
Control | Non‑addressable (or basic SPI) |
Our client wanted something different:
Parameter | Client Requirement |
|---|---|
IC chip | DMX512 (for professional control) |
LED type | RGBW (dedicated white channel for pure white) |
Control | DMX addressable, full programmability |
The standard board design could not support this. We needed to redesign the PCB entirely to accommodate the DMX RGBW chipset and the different circuit topology.

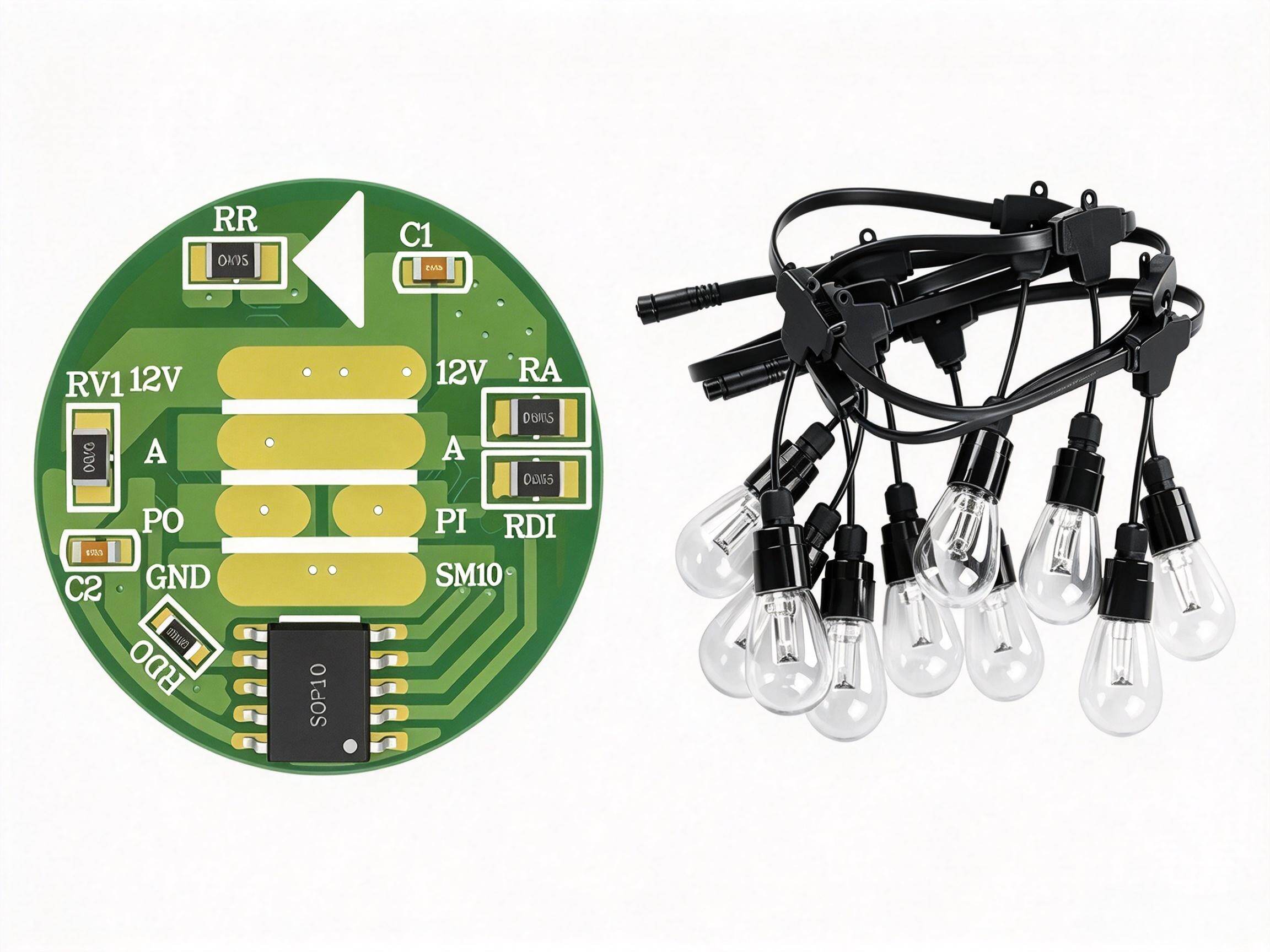

Our Solution: Redesigning the PCB
The transition from GS8206 to DMX RGBW required:
Design Change | Reason |
|---|---|
New IC placement | DMX chips have different pin configurations |
RGBW LED routing | 4‑channel output (R, G, B, W) vs 3‑channel (R, G, B) |
Signal trace optimization | DMX requires stable signal transmission over longer distances |
Power layout adjustment | RGBW draws different current profiles |
We worked closely with our engineering team to create a new PCB layout that would meet the client‘s DMX RGBW requirements while maintaining the durability and aesthetic of the S14 Festoon bulb.
Power Injection: Conventional Wisdom vs Real Performance
Standard recommendations for S14 Festoon bulbs suggest:
Recommendation | Standard Practice |
|---|---|
Power injection interval | Every 20 bulbs |
Maximum recommended run | Up to 40 bulbs |
Our client had a different requirement: they wanted longer runs with fewer power injection points.
We took this as a challenge. Through rigorous testing, we discovered that with our redesigned PCB and optimized power distribution, we could achieve:
4 strings (80 bulbs) with a single power injection point — with no voltage drop.
This was a significant improvement over the standard recommendation.
The Catch: Real‑World Installation Conditions
However, there was a critical factor we had to consider: real‑world installation environments are not the same as lab conditions.
In the field, several factors can affect signal integrity and power distribution:
Environmental Factor | Potential Impact |
|---|---|
Cable length between strings | Increases resistance and voltage drop |
Wire gauge | Thinner wires increase voltage drop |
Connector quality | Poor connections add resistance |
Electromagnetic interference (EMI) | Can corrupt DMX signals |
Temperature variations | Affects copper resistance |
Installation layout | Non‑linear runs affect power distribution |
To account for these variables, we advised the client to take a more conservative approach:
Recommended: Power injection every 3 strings (60 bulbs).
Field Results: Learning from Reality
After installation, our recommendation proved valuable — but it was not the final word.
The client reported that in the actual installation environment, even with power injection every 3 strings (60 bulbs), they still experienced some voltage drop and signal degradation at the far end.
Root cause analysis:
Issue | Contributing Factors |
|---|---|
Voltage drop | Longer‑than‑expected cable runs between strings |
Signal attenuation | EMI from nearby electrical equipment |
Connector losses | Multiple connector junctions along the run |
The solution:
The client added additional power supply injection points along the installation — effectively reducing the distance between power feeds.
Final resolution: By adding more power supplies at strategic points, the client eliminated voltage drop and achieved stable, consistent brightness across the entire installation.
Key Lessons Learned
Lesson | Implication for Future Projects |
|---|---|
Lab testing is not enough | Real‑world installations always introduce variables that cannot be fully simulated. |
Build in safety margin | If lab tests say 80 bulbs are possible, recommend 60 bulbs for field installations. |
Educate the client | Help clients understand the trade‑offs between fewer power injection points and installation reliability. |
Plan for flexibility | Design the system so that additional power supplies can be easily added during installation. |
Document everything | Share test results and recommendations clearly so the client understands the reasoning. |
What This Means for Your Custom Festoon Project
If you are planning a custom S14 Festoon installation, here is what we recommend:
Project Phase | Recommendation |
|---|---|
PCB design | Work with a supplier who can redesign the board to match your specific IC and LED requirements. |
Power planning | Plan for power injection every 60 bulbs (3 strings) as a baseline. |
On‑site flexibility | Budget for additional power supplies in case field conditions require them. |
Testing | Request pre‑shipment testing to verify performance under simulated conditions. |
Installation support | Work with your supplier to identify potential signal interference risks in your specific environment. |
Final Thoughts
This project reinforced something we already knew: customization is not just about changing components. It is about understanding the entire system — from PCB design to power distribution to real‑world installation challenges.
Our client wanted DMX RGBW Festoon bulbs. We delivered. But more importantly, we worked through the power and signal challenges together — turning a potentially frustrating installation into a success story.
If you are looking for custom Festoon bulbs or other LED lighting solutions that go beyond standard offerings, we are ready for the challenge.
