Shenzhen, China – September 2026

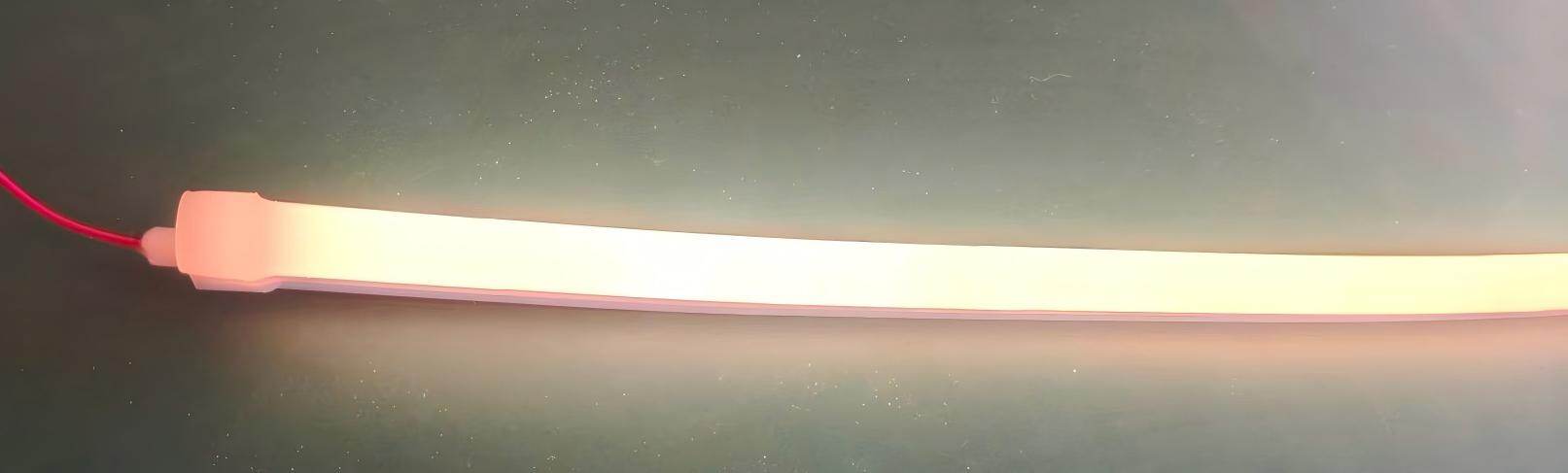

ElisaCustom is pleased to announce the release of our new 10×23 Side‑View LED Neon Flex, a premium single‑color lighting solution designed for architectural outlining, signage, display cases, and creative installations. With a 10×23mm side‑view profile, 120 SMD2835 (3000K) LEDs per meter, and IP67 waterproof rating, this neon flex delivers smooth, uniform illumination with a dedicated warm white channel for pure, high‑quality white light.
What Makes This Neon Flex Unique?
Feature | Specification |
|---|---|
Product Name | 10×23 Side‑View LED Neon Flex |
Profile Size | 10mm × 23mm |
LED Type | SMD2835 (3000K warm white) |
LED Density | 120 LEDs/m |
Power | 14.4W/m |
Voltage | DC24V |
Beam Angle | 120° |
IP Rating | IP67 (waterproof) |
Standard Length | 5m per roll (customizable) |
Connector | 2‑pin bare wire on both ends (customizable) |
Accessories | 2 mounting clips per meter |
Warranty | 5 years (LED strip) / 3 years (neon housing) |
Key Features
1. 120 SMD2835 LEDs – High‑Brightness, Uniform Warm White
With 120 LEDs per meter, this neon flex delivers:
High brightness and consistent light output
Smooth, seamless light with no visible hotspots
Uniform illumination across the entire 5‑meter run
The SMD2835 LED is a reliable, high‑performance chip known for excellent brightness and efficiency.

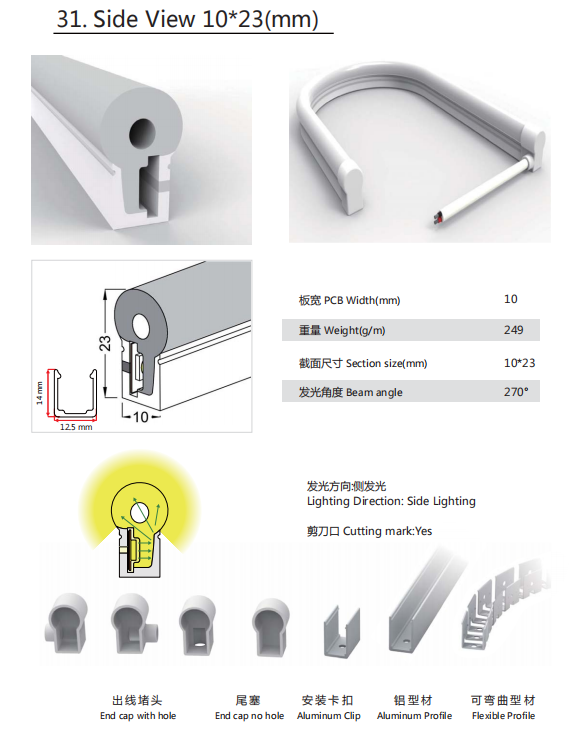

2. Side‑View 10×23mm Profile – Wide, Even Illumination
The 10×23mm side‑view profile offers:
A wider light‑emitting surface for even illumination
Slim 10mm width for discreet installation
Professional appearance for exposed applications
The side‑view design directs light at a wide angle, creating a smooth, homogeneous glow ideal for architectural outlining and signage.
3. Dedicated 3000K Warm White – Pure, Inviting Light
The 3000K warm white color temperature delivers:
A cozy, inviting ambiance
Accurate color rendering for warm‑tone environments
Consistent color quality across the entire run
Unlike RGB‑mixed whites, this dedicated white LED provides pure, clean light without tinting or color shift.
4. DC24V Operation – Long Runs, Consistent Brightness
Operating at DC24V offers:
Reduced voltage drop over longer distances
Consistent brightness across the full 5‑meter roll
Efficient power consumption at 14.4W/m
Compatibility with standard 24V power supplies
Recommended: For runs longer than 5 meters, power injection is recommended to maintain uniform brightness.
5. IP67 Waterproof – Indoor & Outdoor Ready
With an IP67 rating, this neon flex is:
Fully dust‑tight
Protected against temporary immersion in water
Suitable for outdoor facades, wet locations, and exposed installations
Note: The high‑quality silicone housing is UV‑resistant and anti‑yellowing, ensuring long‑term durability even in outdoor environments.
6. Simple 2‑Pin Bare Wire Connection
The neon flex comes with 2‑pin bare wire on both ends, offering:
Easy connection to power supplies or drivers
Simple wiring for quick installation
Compatibility with standard 24V constant voltage drivers
7. Customizable Options
Option | Standard | Customizable |
|---|---|---|
Length | 5m per roll | ✅ Yes |
Connector | 2‑pin bare wire | ✅ Yes (JST, M12, etc.) |
Color Temperature | 3000K | ✅ 2700K / 4000K / 6500K available |
IP Rating | IP67 | ✅ IP20 / IP65 available |
8. Comprehensive Warranty
5‑year warranty on the LED strip
3‑year warranty on the neon housing
This warranty coverage reflects our confidence in the product’s long‑term reliability and performance.
Technical Specifications
Parameter | Specification |
|---|---|
Product Name | 10×23 Side‑View LED Neon Flex |
Profile Size | 10mm × 23mm |
LED Type | SMD2835 (3000K) |
LED Density | 120 LEDs/m |
Power | 14.4W/m |
Voltage | DC24V |
Beam Angle | 120° |
IP Rating | IP67 |
Material | Silicone (UV‑resistant) |
Standard Length | 5m per roll |
Connector | 2‑pin bare wire on both ends |
Cutting Unit | Customizable |
Accessories | 2 mounting clips per meter |
Warranty | 5 years (LED) / 3 years (housing) |
Certifications | CE, RoHS (contact for full list) |
Applications
Application | Why This Neon Flex Fits |
|---|---|
Architectural outlining | Side‑view profile, IP67 waterproof |
Signage & channel letters | Wide, even illumination, dedicated white |
Display cases & shelving | High density, uniform light |
Outdoor facades | IP67, UV‑resistant silicone |
Cove & accent lighting | Flexible, easy installation |
Hospitality & retail | 3000K warm white for inviting ambiance |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout and measure the required length |
2 | Cut at the designated cutting point if needed |
3 | Clean the mounting surface |
4 | Secure using mounting clips (2 per meter included) |
5 | Connect the 2‑pin bare wire to a compatible DC24V power supply |
6 | Power on and test |
Tip: For optimal performance, ensure the power supply can handle the total load (14.4W/m × total length).
Summary
Advantage | Benefit |
|---|---|
120 SMD2835 LEDs/m | High brightness, uniform warm white |
10×23mm side‑view profile | Wide, even illumination |
3000K warm white | Pure, inviting light |
DC24V operation | Long runs, consistent brightness |
IP67 waterproof | Indoor and outdoor use |
5‑meter standard length | Extended coverage, fewer connections |
2‑pin bare wire connection | Simple, quick installation |
Customizable | Length, connector, CCT, and IP rating available |
5‑year LED warranty | Long‑term reliability |
Availability
The new 10×23 Side‑View LED Neon Flex is available for order now. Custom lengths, connectors, color temperatures, and configurations are available upon request.
👉 Write to me for samples, technical support, or a quote.
