Shenzhen, China – September 2026

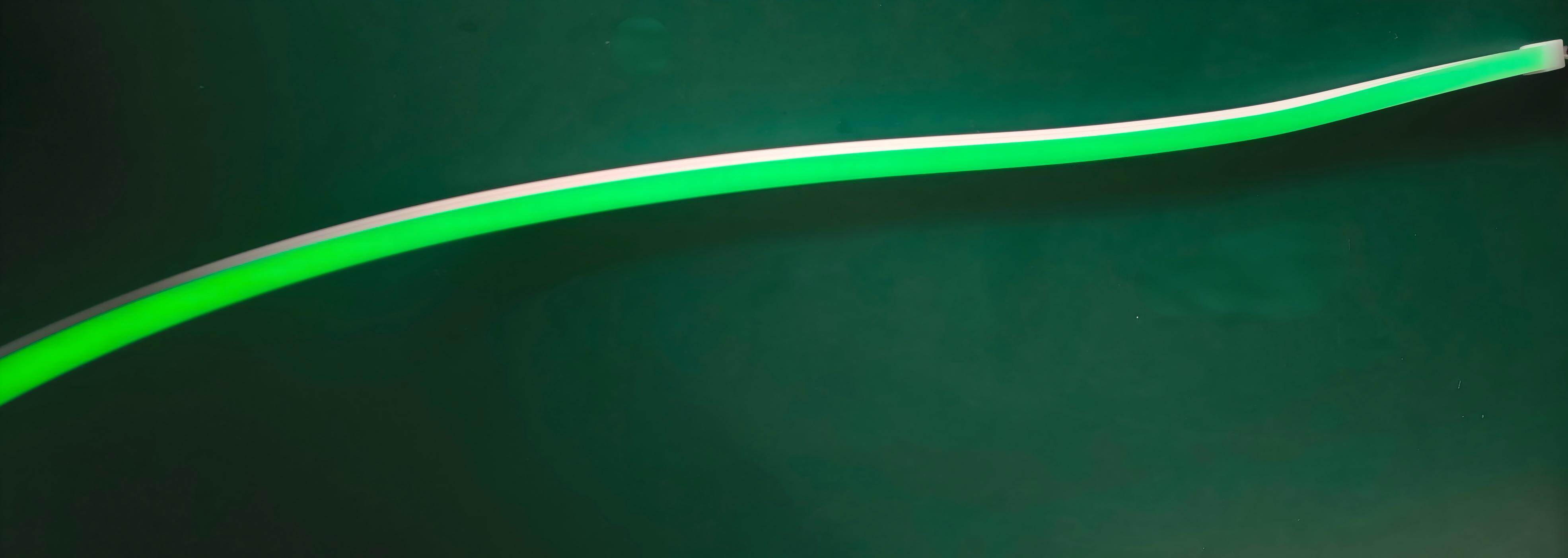

ElisaCustom is pleased to announce the release of our new 12×12 Top‑View LED Neon Flex, a premium lighting solution designed for architectural outlining, signage, display cases, and creative installations. With a slim 12×12mm square profile, 120 SMD3538 RGBW (3000K) LEDs per meter, and IP67 waterproof rating, this neon flex delivers smooth, uniform illumination with a dedicated warm white channel for pure, high‑quality white light.
What Makes This Neon Flex Unique?
Feature | Specification |
|---|---|
Product Name | 12×12 Top‑View LED Neon Flex |
Profile Size | 12mm × 12mm |
LED Type | SMD3538 RGBW (3000K warm white) |
LED Density | 120 LEDs/m |
Power | 14.4W/m |
Voltage | DC24V |
Beam Angle | 120° |
IP Rating | IP67 (waterproof) |
Standard Length | 5m per roll (customizable) |
Connector | 5‑pin JST M/F (customizable) |
Accessories | 2 mounting clips per meter |
Warranty | 5 years (LED strip) / 3 years (neon housing) |
Key Features
1. 120 SMD3538 RGBW LEDs – True Color + Dedicated Warm White
With 120 LEDs per meter, this neon flex delivers:
High brightness and vivid RGB color mixing
Dedicated 3000K warm white chip for pure, clean white light
Smooth, seamless light with no visible hotspots
Uniform illumination across the entire 5‑meter run
The SMD3538 RGBW LED integrates red, green, blue, and a dedicated warm white chip in a single package — eliminating the color mixing artifacts common with standard RGB strips.

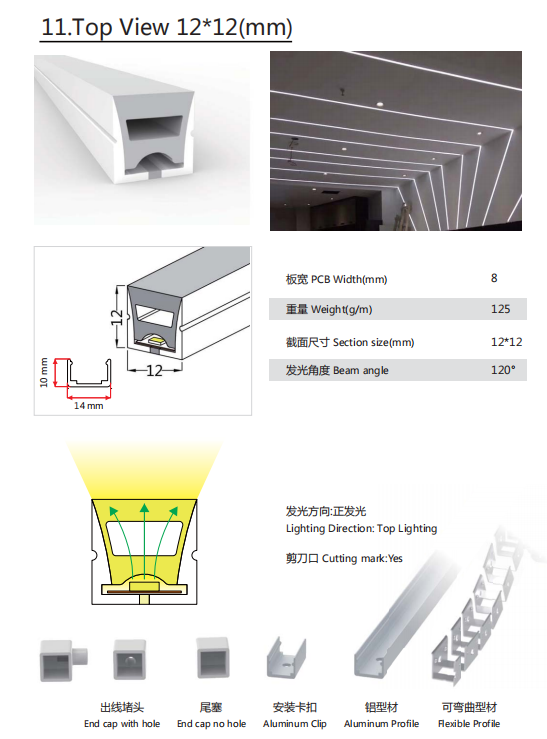

2. Top‑View 12×12mm Profile – Slim & Versatile
The 12×12mm square section makes this neon flex suitable for a wide range of applications:
Building outlines and architectural accents
Channel letters and signage
Display cases and retail shelving
Cove and accent lighting
The top‑view design directs light forward, creating a clean, focused glow .
3. DC24V Operation – Long Runs, Consistent Brightness
Operating at DC24V offers:
Reduced voltage drop over longer distances
Consistent brightness across the full 5‑meter roll
Efficient power consumption at 14.4W/m
Compatibility with standard 24V power supplies
Recommended: For runs longer than 5 meters, power injection is recommended to maintain uniform brightness.
4. IP67 Waterproof – Indoor & Outdoor Ready
With an IP67 rating, this neon flex is:
Fully dust‑tight
Protected against temporary immersion in water
Suitable for outdoor facades, wet locations, and exposed installations
Note: The high‑quality silicone housing is UV‑resistant and anti‑yellowing, ensuring long‑term durability even in outdoor environments.
5. RGBW – Why a Dedicated White Channel Matters
Feature | RGB (Mixed White) | RGBW (Dedicated White) |
|---|---|---|
White light quality | Mixed from RGB — can appear tinted | Pure, clean 3000K warm white |
Color rendering | Poor for whites | Excellent for whites and pastels |
Power efficiency | Uses 3 channels to create white | Single white channel, more efficient |
Best for | Dynamic color effects | Projects needing both color and quality white |
For architectural and signage applications where white light quality matters, RGBW is the superior choice.
6. Customizable Options
Option | Standard | Customizable |
|---|---|---|
Length | 5m per roll | ✅ Yes |
Connector | 5‑pin JST M/F | ✅ Yes |
LED Type | SMD3538 RGBW (3000K) | ✅ Other CCT available |
IP Rating | IP67 | ✅ IP20 / IP65 available |
7. Comprehensive Warranty
5‑year warranty on the LED strip
3‑year warranty on the neon housing
This warranty coverage reflects our confidence in the product’s long‑term reliability and performance.
Technical Specifications
Parameter | Specification |
|---|---|
Product Name | 12×12 Top‑View LED Neon Flex |
Profile Size | 12mm × 12mm |
LED Type | SMD3538 RGBW (3000K) |
LED Density | 120 LEDs/m |
Power | 14.4W/m |
Voltage | DC24V |
Beam Angle | 120° |
IP Rating | IP67 |
Material | Silicone (UV‑resistant) |
Standard Length | 5m per roll |
Connector | 5‑pin JST M/F |
Cutting Unit | Customizable |
Accessories | 2 mounting clips per meter |
Warranty | 5 years (LED) / 3 years (housing) |
Certifications | CE, RoHS (contact for full list) |
Applications
Application | Why This Neon Flex Fits |
|---|---|
Architectural outlining | Slim 12×12mm profile, IP67 waterproof |
Signage & channel letters | Top‑view emission, uniform light, RGBW |
Display cases & shelving | High density, dedicated white for accuracy |
Outdoor facades | IP67, UV‑resistant silicone |
Cove & accent lighting | Flexible, easy installation |
Hospitality & retail | 3000K warm white for inviting ambiance |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout and measure the required length |
2 | Cut at the designated cutting point if needed |
3 | Clean the mounting surface |
4 | Secure using mounting clips (2 per meter included) |
5 | Connect the 5‑pin JST M/F connectors |
6 | Connect to a compatible RGBW controller and DC24V power supply |
7 | Power on and test |
Tip: For optimal performance, ensure the power supply can handle the total load (14.4W/m × total length).
Summary
Advantage | Benefit |
|---|---|
120 SMD3538 RGBW LEDs/m | High density, vibrant RGB + pure 3000K white |
12×12mm top‑view profile | Slim, professional appearance |
DC24V operation | Long runs, consistent brightness |
IP67 waterproof | Indoor and outdoor use |
5‑meter standard length | Extended coverage, fewer connections |
Customizable | Length, connector, and IP rating available |
5‑year LED warranty | Long‑term reliability |
Availability
The new 12×12 Top‑View LED Neon Flex is available for order now. Custom lengths, connectors, and configurations are available upon request.
👉 Contact Us Today for samples, technical support, or a quote.
