Shenzhen, China – September 2026
Quick Answer
This Anti-Glare LED Aluminum Profile Kit combines the 1610 or 2010 profile with a DMX512-compatible LED strip, center-fed power distribution for up to 10 meters of continuous run, and a customizable accessory set (profiles, end caps, mounting clips, and connectors). It is designed as a complete solution for architectural accent lighting, cove lighting, and display applications where glare control and even illumination are essential.
Featuring anti‑glare optical design, DMX512 control capability, and center‑fed power distribution supporting up to 10 meters of continuous run, these profiles deliver professional‑grade performance in a sleek, low‑profile form factor.
What's in the Kit?
Component | What It Includes |
|---|---|
LED Aluminum Profile | 1610 or 2010 anti-glare profile, top-view |
LED Strip | DMX512-compatible strip (specified per project) |
Power Distribution | Center-fed configuration for up to 10m continuous run |
End Caps | Sealed termination for both ends |
Mounting Clips | Secure installation hardware |
Connectors | Power and signal connections |
Accessory Customization | Kit components and quantities freely configurable |
Center-fed power means the power is injected at the middle of the run — supporting up to 5 meters on each side, for a total of 10 meters continuous.
Why This Kit Works as a Complete Solution
Most LED profile projects require sourcing multiple components separately: the profile, the strip, the end caps, the clips, the connectors, and the power supply. This often leads to compatibility issues, missing parts, and wasted time.
This kit solves that by providing a pre-matched, project-ready package:
Standard Approach | Kit Approach |
|---|---|
Source profile from one supplier | Profile included |
Source strip from another | Strip matched to profile |
Source clips and caps separately | Accessories included |
Figure out power distribution | Center-fed configuration specified |
Risk of incompatibility | Pre-matched components |

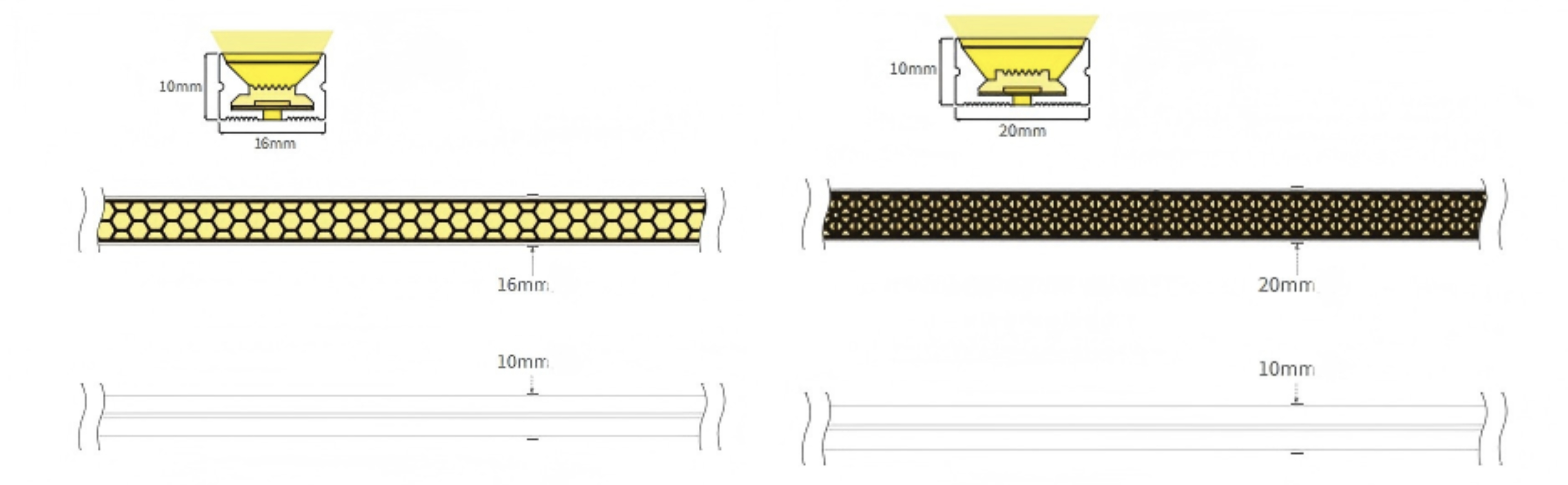

Anti-Glare Profile Options
Two profile sizes are available, both with anti-glare optical design and top-view emission:
Feature | 1610 Series | 2010 Series |
|---|---|---|
Product Name | 1610 Anti‑Glare LED Profile | 2010 Anti‑Glare LED Profile |
Light Direction | Top‑view | Top‑view |
Anti‑Glare Design | Yes | Yes |
Max Continuous Run | 10m (center‑fed, 5m each side) | 10m (center‑fed, 5m each side) |
Control Protocol | DMX512 | DMX512 |
Installation Accessories | Aluminum profiles, end caps, mounting clips | Aluminum profiles, end caps, mounting clips |
Customization | Accessory kits available | Accessory kits available |
Key Features
1. Anti-Glare Optical Design – Visual Comfort
The anti-glare design:
Minimizes direct glare — reduces eye strain in occupied spaces
Improves visual comfort — ideal for retail, office, and hospitality
Enhances light quality — soft, even illumination without harsh hotspots
2. Top-View Emission
Both profiles are designed for top-view light distribution, making them suitable for:
Cove lighting
Under-cabinet illumination
Display case lighting
Architectural accent lighting
Shelf and retail display lighting
3. DMX512 Control – Professional Integration
Compatible with DMX512 control systems, enabling:
Precise color and dimming control
Integration with existing DMX networks
Dynamic effects — smooth transitions, color changes, and animations
4. Center-Fed Power – 10 Meters Continuous
With power injected at the center, each profile supports up to 10 meters of continuous run — 5 meters on each side.
Benefit | Why It Matters |
|---|---|
Fewer power supplies | Reduced component cost |
Lower voltage drop | Consistent brightness across the run |
Simpler wiring | Easier installation for large projects |
5. High-Quality Aluminum Construction
Feature | Benefit |
|---|---|
Excellent heat dissipation | Extends LED lifespan |
Rigid structure | Maintains straight lines |
Sleek appearance | Professional finish |
6. Customizable Accessory Kit
Accessory | Purpose |
|---|---|
Aluminum profile | Main housing |
End caps | Sealed termination |
Mounting clips | Secure installation |
Connectors | Power and signal |
Customization: The accessory kit and quantities can be freely matched by the customer — allowing you to tailor the solution to your specific installation.
Technical Specifications
Parameter | 1610 Series | 2010 Series |
|---|---|---|
Product Name | 1610 Anti‑Glare LED Profile | 2010 Anti‑Glare LED Profile |
Light Direction | Top‑view | Top‑view |
Anti‑Glare Design | Yes | Yes |
Control Protocol | DMX512 | DMX512 |
Power Feed Method | Center‑fed | Center‑fed |
Max Continuous Run | 10m (5m per side) | 10m (5m per side) |
Installation Accessories | Aluminum profiles, end caps, clips | Aluminum profiles, end caps, clips |
Accessory Customization | Yes (freely configurable) | Yes (freely configurable) |
Applications
Application | Why This Series Fits |
|---|---|
Architectural accent lighting | Anti‑glare design, sleek profile |
Cove and ceiling lighting | Top‑view emission, even illumination |
Retail display lighting | Glare‑free product highlighting |
Under‑cabinet lighting | Low profile, professional finish |
Shelf lighting | Uniform light distribution |
Commercial and hospitality spaces | DMX512 integration, visual comfort |
Museum and gallery lighting | Anti‑glare, high‑quality light output |
Technical Specifications
Parameter | 1610 Series | 2010 Series |
|---|---|---|
Profile | 1610 Anti-Glare | 2010 Anti-Glare |
Light Direction | Top-view | Top-view |
Anti-Glare Design | Yes | Yes |
Control Protocol | DMX512 | DMX512 |
Power Feed | Center-fed | Center-fed |
Max Continuous Run | 10m (5m per side) | 10m (5m per side) |
Accessories | Profiles, end caps, clips, connectors | Profiles, end caps, clips, connectors |
Accessory Customization | Yes | Yes |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout and measure the required length |
2 | Select the appropriate accessory kit (profile, end caps, clips) |
3 | Mount the aluminum profile securely |
4 | Insert the LED strip into the profile |
5 | Install end caps and connectors |
6 | Connect to a DMX512 controller and power supply |
7 | Center‑feed power for runs up to 10 meters |
8 | Power on and test |
Power feed note: For optimal performance, inject power at the center of the run. This supports up to 5 meters of operation on each side (10 meters total).
Summary
Advantage | Benefit |
|---|---|
Complete kit | Profile, strip, accessories, and connectors in one package |
Anti-glare design | Reduces eye strain, enhances visual comfort |
Top-view emission | Ideal for coves, displays, and accent lighting |
DMX512 control | Professional integration and dynamic effects |
Center-fed power | 10m continuous run, reduced wiring complexity |
Customizable accessories | Freely match kit components to project needs |
Aluminum construction | Heat dissipation, durability, professional finish |
