Shenzhen, China – September 2026
ElisaCustom is pleased to announce the release of our new 16×16 3D Bendable Flex Neon Series, a revolutionary lighting solution that breaks free from flat, single-plane limitations. Featuring true 360° horizontal and vertical bendability, a wide 270° beam angle, and IP68 waterproofing, this neon strip is designed for creators, architects, and installers who demand both flexibility and performance.
The new series is available in two premium configurations: a high-density 84 LEDs/m version with SMD4040 RGB/RGBW LEDs for vibrant, uniform color, and a WS2815 pixel-addressable version for intricate animation and dynamic effects.
What Makes the 16×16 3D Flex Neon Unique?
Feature | Specification |
|---|---|

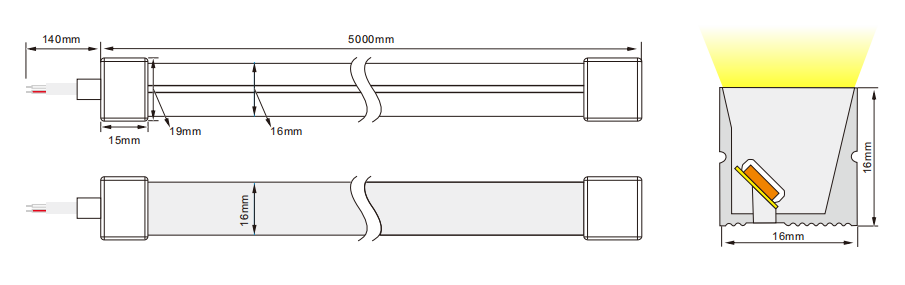

Profile Size | 16mm × 16mm (W × H) |
Bending Capability | 360° horizontal & vertical (true 3D) |
Beam Angle | 270° ultra-wide illumination |
Compatible PCB Width | 8mm |
Voltage | DC24V |
Waterproof Rating | IP68 (one-piece extrusion) |
Standard Length | 5m per roll (customizable) |
Configuration Options
Part Number | Neon Type | LED Type | LED QTY/M | Voltage | Power/M |
|---|---|---|---|---|---|
XXA-NEON-3D1616-84D4040RGB-24V | 16×16 3D Bendable | SMD4040 RGB | 84pcs | DC24V | 25.2W |
XXA-NEON-3D1616-84D4040RGBW-24V | 16×16 3D Bendable | SMD4040 RGBW | 84pcs | DC24V | 25.2W |
WS2815 Built-in Version | 16×16 3D Bendable | 5050 RGB (WS2815) | 60 LEDs/m | DC12V | 14.4W |
Key Features

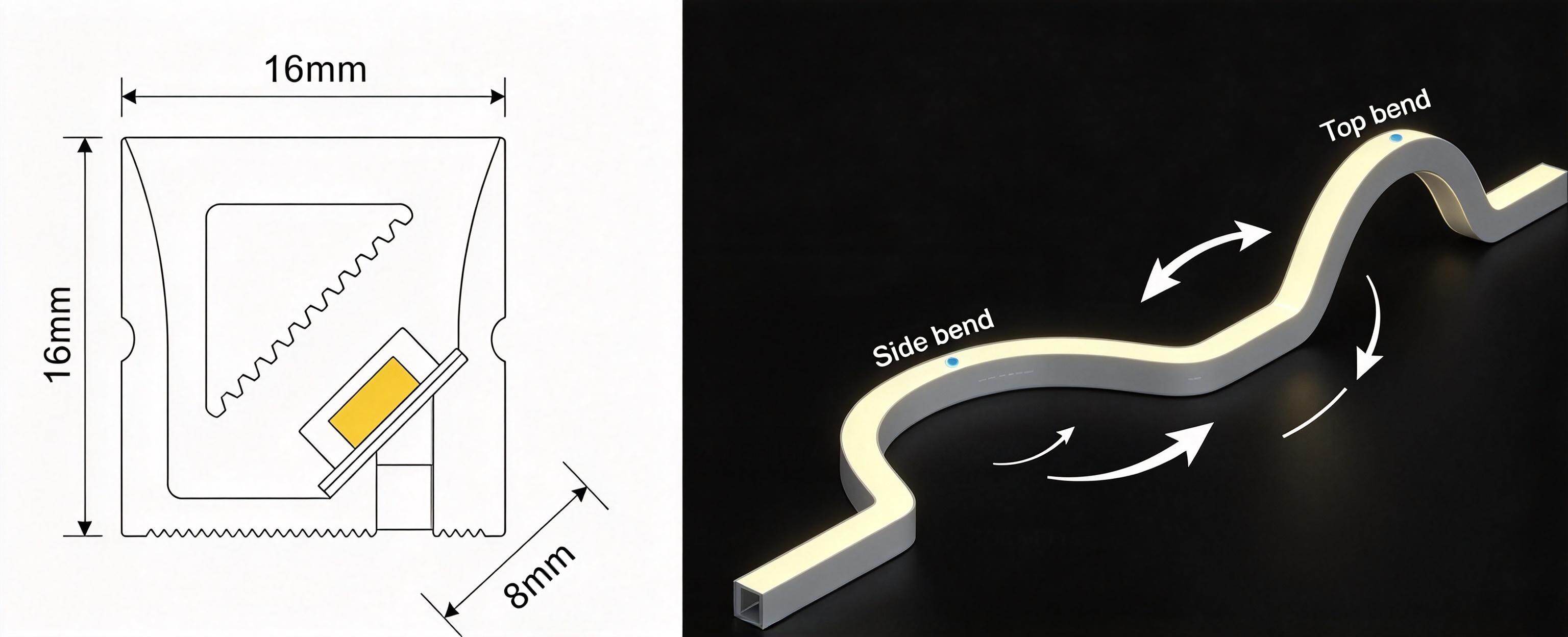

1. True 3D Flexibility – Bend in Any Direction
Unlike standard LED strips that only bend horizontally, the 16×16 profile allows for seamless 360° bending in both horizontal and vertical planes. This enables the creation of complex curves, spirals, and true three-dimensional shapes that flat strips cannot achieve.
2. 270° Ultra-Wide Beam Angle
The 270° beam angle ensures exceptionally uniform, continuous light output with no visible hotspots. This makes it ideal for installations where the light strip itself is visible from multiple angles, such as:
3D signage and logos
Architectural feature lighting
Art installations and sculptures
Retail display accents
3. High-Density 84 LEDs/m with 4040 RGB/RGBW
The SMD4040 LED version offers 84 LEDs per meter, delivering:
High brightness and vivid colors
RGBW option for pure white light (4000K) in addition to full-color mixing
Seamless, continuous light with no visible gaps
4. WS2815 Pixel-Addressable Option
For projects requiring dynamic animations, the WS2815 version provides:
Individual pixel control for chasing, flowing, and pattern effects
Redundant data line (break-point continuation) – if one pixel fails, the rest continue to work
12V operation for longer runs with reduced voltage drop
5. IP68 One-Piece Extrusion – Ultimate Weatherproofing
The robust one-piece extrusion process creates a seamless, resilient seal. This provides:
Superior protection from dust, rain, and moisture
UV resistance – prevents yellowing and cracking from sunlight
Saltwater and chemical resistance – suitable for coastal or harsh environments
Technical Specifications
4040 RGB/RGBW Version
Parameter | Value |
|---|---|
PCB Width | 8mm |
LED Type | SMD4040 RGB / RGBW (4000K) |
LED Quantity | 84 LEDs/m |
Voltage | DC24V |
Power | 25.2W/m |
Terminal Connection | 5 bare wires (24V, R, G, B, W) |
Waterproof | IP20 (standard) – higher IP ratings available |
Accessories | 10 clips per roll |
WS2815 Built-in Version
Parameter | Value |
|---|---|
LED Type | SMD5050 RGB |
IC Type | WS2815 (or SK6813-12V) |
LED Quantity | 60 LEDs/m |
IC Quantity | 60 pixels/m |
Voltage | DC12V |
Power | 14.4W/m |
Cutting Unit | 1.67cm |
IP Rating | IP20 / IP65 / IP66 / IP68 |
Certifications | ETL, CE, RoHS, REACH |
Warranty | 3 years |
Applications
Application | Why 16×16 3D Flex Neon Fits |
|---|---|
3D signage and logos | True 3D bending for extruded and dimensional letterforms |
Architectural cove lighting | 270° beam fills coves evenly |
Theme parks and attractions | IP68 durability + dynamic effects |
Retail displays | Eye-catching 3D light sculptures |
Art installations | Sculpt with light in three dimensions |
Exhibition and event decor | Quick installation, flexible shaping |
Summary
Advantage | Benefit |
|---|---|
16×16 profile | True 3D bending – horizontal and vertical |
270° beam angle | Ultra-wide, uniform illumination, no hotspots |
84 LEDs/m 4040 RGB/RGBW | High brightness, vibrant colors, pure white option |
WS2815 option | Pixel control, redundant data line, animations |
IP68 one-piece extrusion | Weatherproof, UV-resistant, durable |
DC24V operation | Longer runs, reduced voltage drop |
Availability
The new 16×16 3D Bendable Flex Neon Series is available for order now. Custom lengths, LED configurations, and IP ratings are available upon request.
👉 Write to me for samples, technical support, or a quote.
