Shenzhen, China – September 2026
ElisaCustom is pleased to announce the release of our new 60mm RGBW LED Filament Pixel Bulb (Model: XXA-6506RGBW-50) , a high‑brightness, full‑color addressable lighting solution designed for amusement parks, signage, theme attractions, and decorative displays.
Featuring 6× SMD5050 RGBW LEDs plus 2 dedicated white filaments, controlled by the UCS2904 IC chip, this bulb delivers vibrant RGBW color mixing and standalone white illumination — all in a compact 60×83mm package with a 140° beam angle.
What Makes This 60mm Filament Pixel Bulb Unique?
Feature | Specification |
|---|---|
Model No. | XXA-6506RGBW-50 |
Dimensions | 60mm (D) × 83mm (H) |
LED Type | 6 × SMD5050 RGBW LEDs + 2 × White Filaments |
IC Chip | UCS2904 (digital addressable) |
Operating Voltage | DC24V |
Power Consumption | 2.1W per bulb |
Beam Angle | 140° |
Drill Hole Size | 20mm |
Lifespan | 50,000 hours |
IP Rating | IP20 (non‑waterproof) / IP65 / IP67 (waterproof) |
Housing Options | Transparent / Milky white |
Connector Type | 3‑pin JST‑SM (male & female) |
Key Features
1. Upgraded RGBW Pixel Design
Significantly larger and brighter than standard 20mm models, this bulb supports full‑color RGBW pixel control — surpassing single‑color limitations for dynamic, eye‑catching displays.
2. Dual Light Source – RGBW + Dedicated White Filaments
6 × SMD5050 RGBW LEDs for vibrant color mixing
2 × White Filaments for dedicated warm/cool white illumination
Pure white output without color mixing artifacts
3. UCS2904 IC – Digital Addressable Control
The UCS2904 IC enables:
Individual pixel control – each bulb can be addressed independently
256 grayscale levels per channel for smooth, professional colour transitions
Full‑color RGBW + dedicated white channel
4. Daisy‑Chain Capable – Easy Installation
Each bulb comes with two 3‑pin JST‑SM connector cables (input & output), enabling seamless series connection for multi‑unit installations.
Parameter | Specification |
|---|---|
Max Series Connection | 40 bulbs per power feed |
Recommended Power Feed | Every 20 bulbs (prevents voltage drop) |
Connector | 3‑pin JST‑SM, input + output |
5. Weatherproof Options – Indoor & Outdoor Ready
Version | IP Rating | Suitable For |
|---|---|---|
Non‑waterproof | IP20 | Indoor use only |
Waterproof | IP65 | Dust‑tight, protected against water jets |
Waterproof | IP67 | Dust‑tight, temporary immersion protection |
IP67 version: Sealed with high‑grade silicone gel for robust weather resistance, suitable for outdoor amusement parks, signage, and theme attractions.

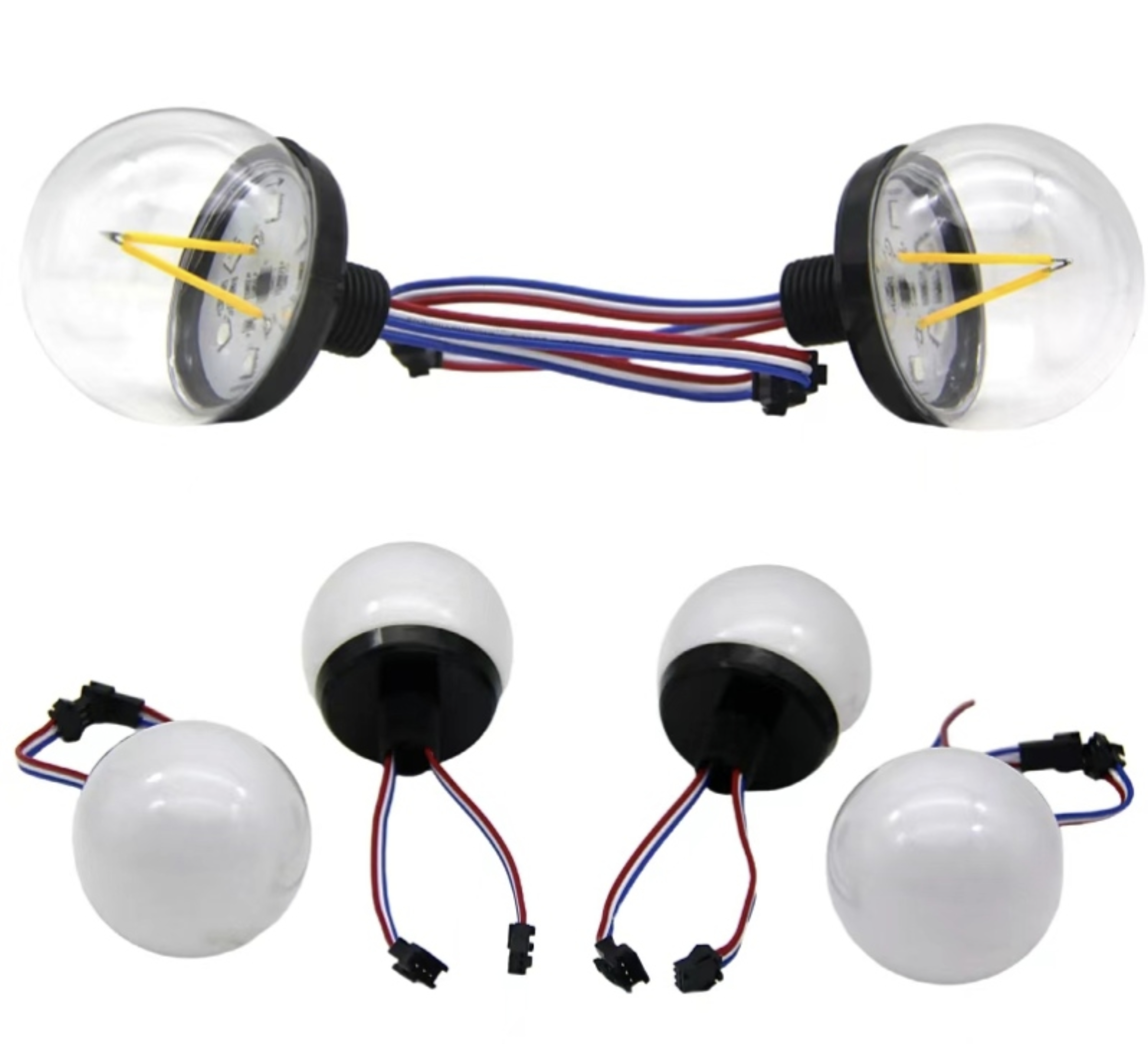

6. Housing Options – Transparent or Milky White
Housing | Light Effect |
|---|---|
Transparent | Clear, bright output with visible filaments |
Milky White | Soft, diffused light for even illumination |
7. 140° Beam Angle – Wide, Uniform Illumination
The 140° beam angle ensures wide, even light distribution — ideal for:
Amusement park rides and attractions
Ferris wheels and observation wheels
Outdoor signage and billboards
Theme park and fairground lighting
8. 50,000‑Hour Lifespan – Long‑Term Reliability
With an average lifespan of 50,000 hours, this bulb is built for long‑term performance with reduced maintenance.
Technical Specifications
Parameter | Specification |
|---|---|
Model No. | XXA-6506RGBW-50 |
Dimensions | 60mm (D) × 83mm (H) |
LED Type | 6 × SMD5050 RGBW + 2 × White Filaments |
IC Chip | UCS2904 |
Operating Voltage | DC24V |
Power Consumption | 2.1W per bulb |
Beam Angle | 140° |
Drill Hole Size | 20mm |
Lifespan | 50,000 hours |
IP Rating | IP20 / IP65 / IP67 |
Housing Options | Transparent / Milky white |
Connector Type | 3‑pin JST‑SM (male & female) |
Certifications | CE, RoHS (contact for details) |
Applications
Application | Why This Bulb Fits |
|---|---|
Outdoor amusement park lighting | IP67 waterproof, RGBW color, high brightness |
Ferris wheels & observation wheels | Daisy‑chain capable, dynamic effects |
Outdoor signage & billboards | Wide 140° beam, vibrant colors |
Casino signs & marquee displays | Eye‑catching pixel effects |
Amusement park rides | Durable, long‑lasting, weatherproof |
Playground & fairground lighting | Safe, reliable, low voltage (DC24V) |
Theme park attractions | Customizable, programmable effects |
Installation Overview
Step | Action |
|---|---|
1 | Plan the layout — determine the number of bulbs and spacing |
2 | Drill 20mm mounting holes at each position |
3 | Connect 3‑pin JST‑SM connectors (input to output) for daisy‑chaining |
4 | Feed power every 20 bulbs for optimal performance |
5 | Connect to a compatible SPI controller and DC24V power supply |
6 | Power on and test |
Power recommendation: Feed power every 20 bulbs to prevent voltage drop and ensure consistent brightness across the entire installation.
Summary
Advantage | Benefit |
|---|---|
6 × RGBW LEDs + 2 white filaments | Full color + dedicated white |
UCS2904 pixel control | Individual addressability, 256 grayscale |
DC24V operation | Safe, efficient, standard voltage |
140° beam angle | Wide, uniform illumination |
IP67 waterproof option | Suitable for outdoor use |
Transparent or milky white housing | Choose your preferred light effect |
Daisy‑chain capable | Easy series connection |
50,000‑hour lifespan | Long‑term reliability |
Availability
The new 60mm RGBW LED Filament Pixel Bulb (XXA-6506RGBW-50) is available for order now. Custom connectors, cable lengths, and IP ratings are available upon request.
