Shenzhen, China – September 2026
ElisaCustom is pleased to announce the release of our new DMX512 Constant Voltage Decoder Series, available in 1‑channel, 3‑channel, 4‑channel, and 5‑channel configurations. Designed for professional lighting control systems, these decoders convert standard DMX512/1990 signals into PWM outputs for constant voltage LED lighting — ideal for architectural, stage, and commercial installations.
The Story Behind This Order: Simon’s Customisation Journey
This product may be a standard offering, but Simon approached it with the thoroughness of a true professional. Before placing his bulk order, he requested samples to verify compatibility with his existing system.

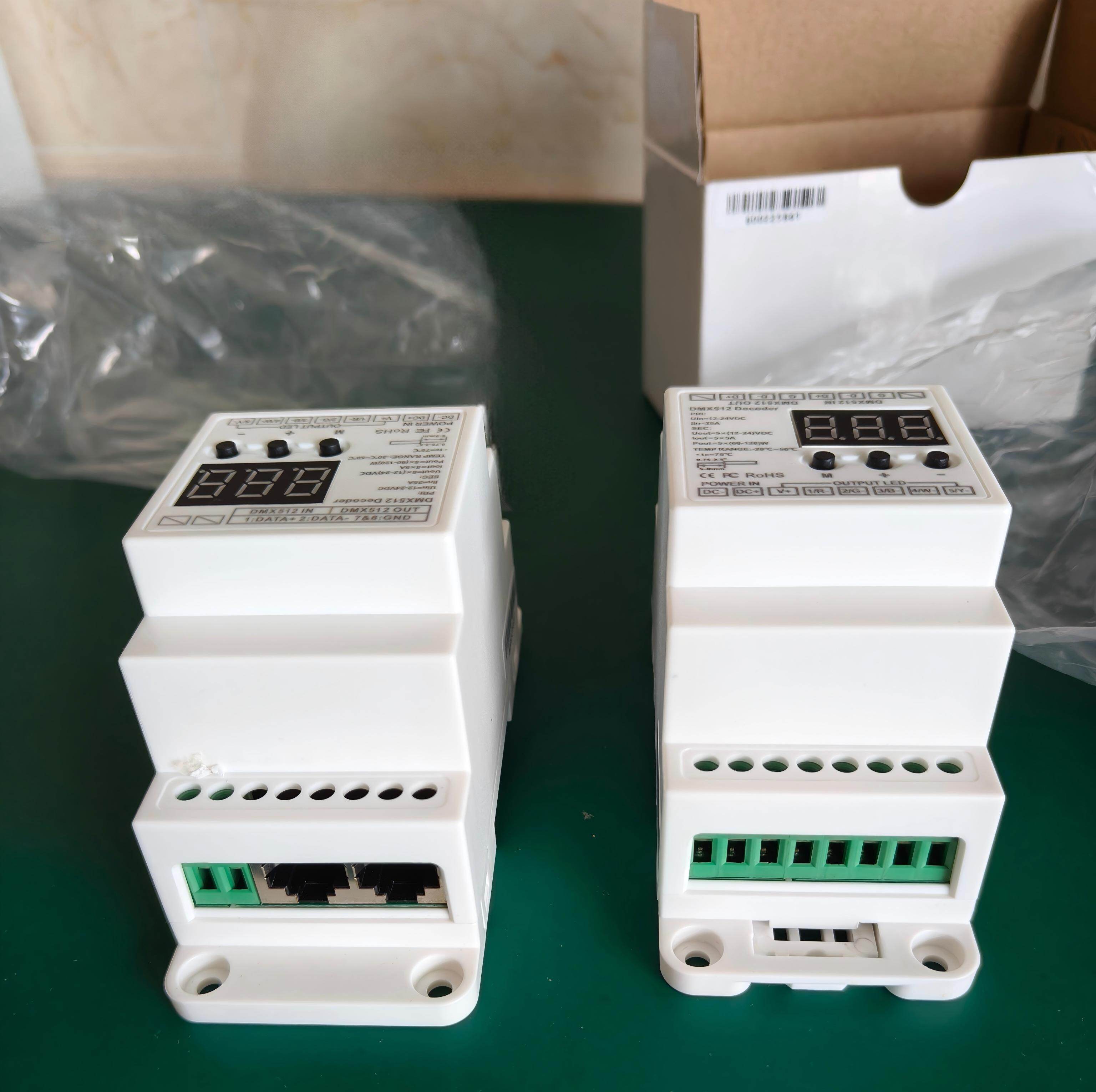

During the sample phase, we provided two connector options for evaluation: RJ45 and terminal block (screw‑type). After testing both, Simon confirmed that the RJ45 connector was the better fit for his installation requirements.
The result? A bulk order of 324 units, all configured with RJ45 connectors — demonstrating how even standard products can benefit from thoughtful, client‑driven customisation.
What Makes This Decoder Series Unique?
Feature | Specification |
|---|---|
Product Name | DMX512 Constant Voltage Decoder |
Channels | 1CH / 3CH / 4CH / 5CH (selectable) |
Input Voltage | DC12V‑24V (auto‑adapting) |
Output Signal | Constant Voltage PWM |
Grey Scale | 4096 levels per channel |
Input Signal | DMX512/1990 |
DMX Socket | Terminal Block or RJ45 |
Mounting | DIN rail (standard) |
Dimensions | L111 × W46 × H66 mm |
Channel & Power Options
Model | Channels | Output Current (per CH) | Max Power (12V/24V) |
|---|---|---|---|
1CH | 1 | 10A | 120W / 240W |
3CH | 3 | 8A | 288W / 576W |
4CH | 4 | 6A | 288W / 576W |
5CH | 5 | 5A | 300W / 600W |
All models support 4096 grey scales per channel for smooth, flicker‑free dimming.
Key Features
1. Multi‑Channel Options – 1 to 5 Channels
Choose the channel count that matches your project:
1‑channel: Ideal for single‑colour dimming
3‑channel: Perfect for RGB colour mixing
4‑channel: Supports RGBW or tunable white
5‑channel: RGBWY or additional colour control
2. 4096 Grey Scales – Smooth, Professional Dimming
With 4096 levels per channel, this decoder delivers:
Ultra‑smooth, flicker‑free dimming
Professional‑grade colour transitions
Stable PWM output without strobe
3. DMX512/1990 Compatible – Industry Standard
The decoder accepts standard DMX512/1990 signals, ensuring compatibility with:
Professional lighting consoles
Digital output desks
Architectural control systems
4. DIN Rail Mount – Easy for Large‑Scale Projects
The DIN rail design simplifies installation in control cabinets, making it ideal for large‑scale commercial and infrastructure projects.
5. Dual Connector Options – RJ45 or Terminal Block
Connector | Best For |
|---|---|
RJ45 | Quick connection, network‑style cabling |
Terminal Block | Screw‑type, secure wiring for permanent installations |
Simon’s choice: After testing both, Simon selected RJ45 for his bulk order of 324 units.
6. Master & Slave Modes – Flexible Control
The decoder supports both Master and Slave modes:
Master Mode: Standalone operation with built‑in colour‑changing programs
Slave Mode: Receives DMX512 signal from a controller or console
7. Built‑in Colour‑Changing Programs
In Master mode, the decoder offers 8 colour‑changing programs with 10 speed levels:
Mode | Description |
|---|---|
520‑529 | Red → Orange → Yellow → Green → Cyan → Blue → Magenta (Fading) |
530‑539 | White → Magenta → Red → Orange → Yellow → Green → Cyan → Blue (Fading) |
540‑549 | Yellow/Orange → Red (Fading) |
550‑559 | Magenta → Blue (Fading) |
560‑569 | Cyan → Blue (Fading) |
570‑579 | Green → Yellow (Fading) |
580‑589 | All 5 channels pulsating 1%‑100% (Fading) |
590‑599 | All 5 channels strobo 0%‑100% (Jumping) |
8. Safety & Protection Features
Over‑current protection
Short‑circuit protection
Wrong wiring protection at DMX port
Power‑loss memory function
3‑year warranty
Technical Specifications
Parameter | 1CH | 3CH | 4CH | 5CH |
|---|---|---|---|---|
Input Voltage | DC12‑24V | DC12‑24V | DC12‑24V | DC12‑24V |
Output Current | 10A | 8A | 6A | 5A |
Max Power (24V) | 240W | 576W | 576W | 600W |
Grey Scale | 4096 | 4096×3 | 4096×4 | 4096×5 |
DMX Socket | RJ45 / Terminal | RJ45 / Terminal | RJ45 / Terminal | RJ45 / Terminal |
Mounting | DIN rail | DIN rail | DIN rail | DIN rail |
Dimensions (mm) | 111×46×66 | 111×46×66 | 111×46×66 | 111×46×66 |
Warranty | 3 years | 3 years | 3 years | 3 years |
Applications
Application | Why This Decoder Fits |
|---|---|
Architectural lighting | DIN rail mount, DMX512 control, 4096 grey scales |
Stage and theatre | Smooth dimming, multi‑channel options |
Commercial signage | RGBWY support, reliable PWM output |
Large‑scale installations | DIN rail for control cabinets, up to 600W |
LED strip lighting | Constant voltage PWM for RGB/RGBW strips |
Installation Overview
Step | Action |
|---|---|
1 | Mount the decoder on a standard DIN rail |
2 | Connect DC12‑24V power supply |
3 | Connect DMX512 input (RJ45 or terminal block) |
4 | Connect LED output channels to the load |
5 | Set DMX address using the 3‑digit display and M/+/- buttons |
6 | Power on and test |
DMX Address Setting: Use the M, +, and – buttons to set the starting address (001‑512). The decimal point blinks when a DMX signal is received.
Summary
Advantage | Benefit |
|---|---|
1‑5 channel options | Flexible for any project |
4096 grey scales | Smooth, professional dimming |
DMX512/1990 compatible | Industry‑standard control |
DIN rail mount | Easy for large‑scale installations |
RJ45 or terminal block | Choose your connector |
Master/Slave modes | Standalone or controlled operation |
Built‑in colour programs | Quick setup without a console |
3‑year warranty | Long‑term reliability |
Availability
The new DMX512 Constant Voltage Decoder Series is available for order now. Choose from 1‑channel to 5‑channel models with RJ45 or terminal block connectors.
👉 Contact Us Today for samples, technical support, or a quote.
