New RGB 180° S‑Shape Flex LED Strip – 3030 High‑Power Chip, 180° Beam, DC24V

Shenzhen, China – September 2026

ElisaCustom is pleased to announce the release of our new RGB 180° S‑Shape Flex LED Strip, featuring high‑power 3030 RGB chips, a 180° beam angle, and a unique S‑shape design for easy bending during installation.

Designed specifically for LED advertising boxes, soft film displays, and backlighting applications (4–6cm thickness, 10cm spacing between strips), this strip delivers vibrant, uniform color with high brightness and low decay — all in a flexible, easy‑to‑install format.

What Makes This S‑Shape Flex LED Strip Unique?

Key Features

1. High‑Power 3030 RGB Chips – Superior Brightness

The strip uses 1W 3030 RGB chips (not standard 5050 or 2835), delivering:

• Higher brightness – 420 lm/m for vivid color displays

• Low light decay – consistent performance over time

• Saturated colors – rich reds, greens, and blues for dynamic effects

2. 180° Beam Angle – Wide, Uniform Illumination

The 180° beam angle ensures even light distribution across the surface, making this strip ideal for:

• LED advertising boxes and light boxes

• Soft film backlighting

• Diffused lighting applications

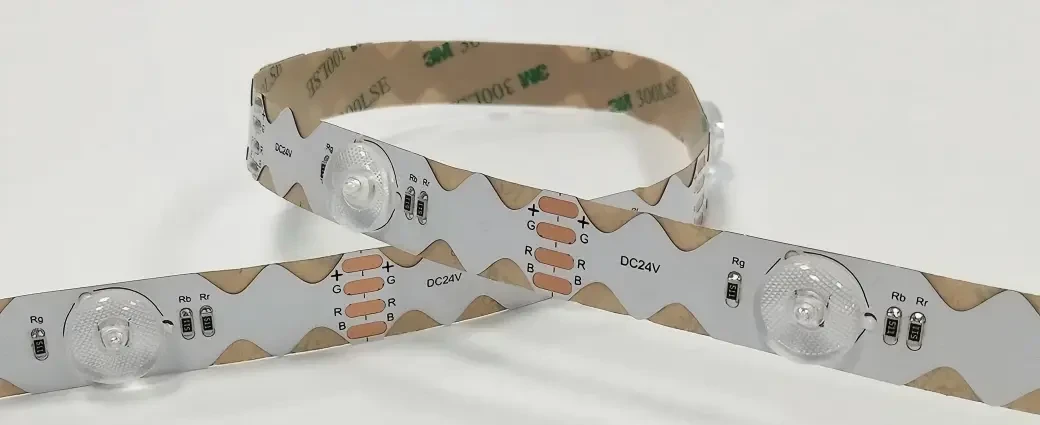

3. S‑Shape Design – Easier Bending During Installation

Unlike standard flat strips, the S‑shape design allows for easier bending and shaping around corners and curves — reducing installation time and improving flexibility for custom layouts.

4. Optimized for Advertising Boxes – 4–6cm Thickness

This strip is specifically designed for LED advertising boxes with 4–6cm thickness and 10cm spacing between strips, ensuring uniform illumination without hotspots or dark spots.

5. Advanced Optical Design – Secondary Lens Performance

The 3030 RGB chip is paired with a specialized primary optical design that effectively collects and shapes the light output. For projects requiring even greater control, this strip can be paired with secondary lenses to refine beam angles and achieve custom light distribution patterns. This makes it a versatile platform for LED lens design applications — whether you need standard diffusion or precise optical control.

Our experienced team can assist with custom lens design to tailor the beam profile for your specific signage or backlighting needs, optimizing both led optical lens selection and overall system efficiency.

6. Flexible PCB – 15mm Width with Adhesive Backing

The 15mm wide PCB with adhesive tape on the back allows for:

• Quick peel‑and‑stick installation

• Secure mounting on flat or slightly curved surfaces

• Flexibility for various layout configurations

7. 50,000‑Hour Lifespan – Long‑Term Reliability

With an average lifespan of 50,000 hours, this strip is built for:

• Long‑term performance – reduced maintenance

• Reliable operation – suitable for permanent installations

• Excellent value – lower total cost of ownership

8. Standard 5‑Meter Roll – Extended Coverage

The 5‑meter roll provides extended continuous runs with fewer connections, reducing installation time and potential failure points.

Specifications

Applications

Installation Overview

Summary

Availability

The new RGB 180° S‑Shape Flex LED Strip is available for order now. Custom lengths, OEM/ODM, and custom lens designs are available upon request.
