Quick Answer

Achieving perfectly uniform illumination in lightbox LED lighting and billboard lighting solutions is not about using more lights — it is about using the right lights with the correct optical engineering. The secret lies in specifying even light distribution modules with wide beam angles (typically 160°–170°) and high-quality PMMA lenses. Furthermore, the layout of your backlit signage LED is critical; you must calculate the optimal module spacing based on the depth of the lightbox to prevent "hot spots" and shadows. By mastering these technical factors, you can maximize the visual impact of your advertising lightbox lights while reducing energy consumption.

Introduction: The "Hot Spot" Problem in Signage

When a customer looks at a lightbox or billboard, they should see a flawless, vibrant graphic. They should not see the individual LED modules behind the acrylic face.

However, achieving this level of perfection is one of the most common challenges in the signage industry. Uneven illumination — characterized by bright "hot spots" directly in front of the LEDs and dark "zones" between them — makes a brand look cheap, unprofessional, and poorly manufactured.

Whether you are building a small retail menu board or a massive highway billboard, the technical principles for achieving uniformity are the same. This guide walks you through the essential steps for selecting and installing the best lightbox LED lighting and billboard lighting solutions.

1. The Core Technology: Even Light Distribution Modules

The foundation of any great lightbox is the LED module itself. Standard LED modules are designed to throw light forward in a narrow beam. For lightboxes, you need the exact opposite.

Wide Beam Angles

To prevent spotting, you must use even light distribution modules with a wide beam angle, typically between 160° and 170°. These lenses (usually made of high-quality PMMA or polycarbonate) diffuse the light outward, overlapping with adjacent modules to create a smooth, continuous blanket of light.

Lens Quality Matters

Cheap, injection-molded lenses with impurities can cause light scattering and yellowing over time. High-end backlit signage LED modules use optical-grade PMMA lenses that maintain clarity and color consistency for years, even under intense UV exposure.

Diffuser Films

Sometimes, even with the best modules, the acrylic face isn't enough to hide the LEDs. In these cases, adding a high-quality diffuser film between the LEDs and the printed graphic is a highly effective way to achieve perfect uniformity without losing too much brightness.

2. The Physics of Layout: Module Spacing and Box Depth

You can buy the most expensive advertising lightbox lights on the market, but if the layout is wrong, the result will be poor. The relationship between the depth of the lightbox and the spacing of the modules is governed by simple geometry.

The Golden Rule of Spacing

The deeper the lightbox, the further apart you can space the modules.

The "Uniformity Ratio"

In professional billboard lighting solutions, we aim for a uniformity ratio of at least 0.7 (Minimum Illuminance / Maximum Illuminance). This means the darkest part of the sign is still at least 70% as bright as the brightest part. To achieve this, refer to the manufacturer's photometric data for the exact spacing-to-depth ratio.

Edge-to-Edge Coverage

Do not forget the edges. LEDs must be placed close enough to the edges of the frame so the corners of the sign are as bright as the center.

3. Matching Power to Application: Billboards vs. Lightboxes

Different applications require vastly different billboard lighting solutions.

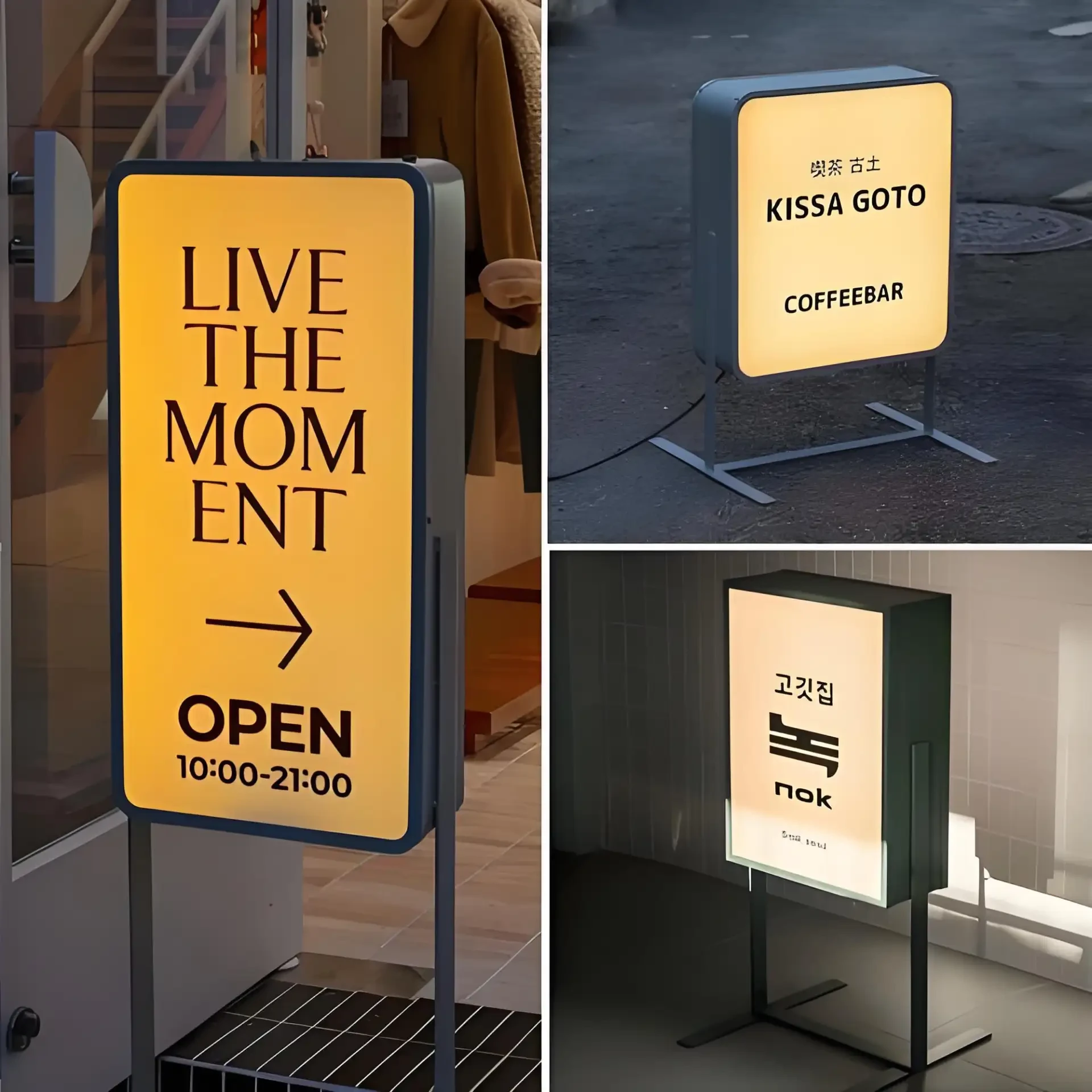

Retail Lightboxes (Indoor/Semi-Outdoor)

These are typically viewed from a close distance. They require:

• Moderate brightness — around 3,000 to 5,000 nits

• Excellent color rendering — CRI > 80

• High-density modules — for even coverage

Best for: menu boards, retail displays, indoor signage.

Highway Billboards (Outdoor)

These must compete with sunlight, headlights, and vast viewing distances. They require:

• Extremely high-output lightbox LED lighting — often using high-power, 1W+ modules

• Constant current drivers — to prevent dimming at the end of long strings

• IP67 rating — for weather protection

Best for: highway billboards, large-format outdoor advertising.

Color Temperature Consistency

For large billboards, ensuring every module is the exact same color temperature (e.g., 6500K) is critical. A slight color shift (e.g., mixing 6000K and 6500K modules) will be highly visible on a large white background. Always specify modules from the same manufacturing batch (binned LEDs).

4. Installation and Maintenance Best Practices

Even the best lighting design can fail due to poor installation.

Waterproofing (IP Ratings)

For outdoor backlit signage LED, always use IP67-rated modules. Even if the lightbox is sealed, condensation can form inside. IP67 modules are fully encapsulated to prevent water damage.

Modular Connectors

Use modules with quick-connect waterproof connectors. If a single module fails on a massive highway billboard, technicians can replace just that module without rewiring the entire sign.

Thermal Management

LEDs generate heat, and in a sealed lightbox, heat buildup can degrade light output and lifespan. Ensure the lightbox has:

• Proper ventilation

• Or use modules mounted on aluminum backplates to dissipate heat efficiently

FAQ: Uniform Illumination in Lightboxes & Billboards

How many LED modules do I need for my lightbox?

There is no one-size-fits-all answer. It depends on the depth of the box and the beam angle of the modules. Generally, a box of 10cm depth might require modules spaced every 8–10cm. For a box of 20cm depth, you might space them every 15–20cm. Always ask your supplier for the spacing recommendation based on the module's specific optical data.

Can I use standard LED strips instead of modules for a lightbox?

While possible, it is usually not recommended for professional results. LED strips have a very narrow beam angle and are difficult to space evenly across a large surface. The result is almost always heavy "striping" or "spotting." Even light distribution modules are specifically designed to solve this problem.

Why is my illuminated sign showing bright spots (hot spots)?

Hot spots occur when:

• The LEDs are too close to the acrylic face

• The spacing between modules is too wide

• The modules lack a proper wide-angle lens

To fix this, you can increase the depth of the box, decrease the spacing of the modules, or switch to higher-quality even light distribution modules.

What is the best color temperature for an outdoor billboard?

For most outdoor advertising, a cool white (6500K) is preferred because it cuts through ambient light and creates high contrast for the printed graphics. However, for luxury brands or historical signage, a warmer white (3000K–4000K) might be more appropriate to convey elegance.

What is the uniformity ratio and why does it matter?

The uniformity ratio is the ratio of minimum illuminance to maximum illuminance across the sign face. A ratio of 0.7 or higher is considered professional-grade. Lower ratios result in visible hot spots and dark zones, making the sign look cheap and unprofessional.
